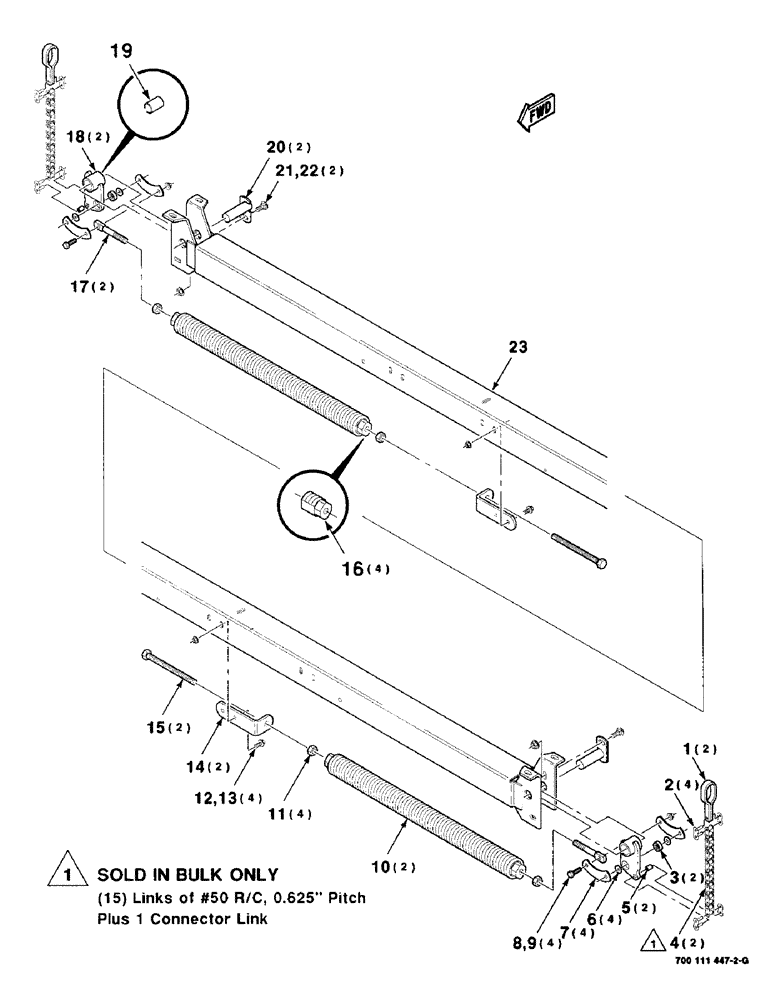

Запчасти Case IH 8360 (5-12) - HAY CONDITIONER SPRING ASSY., 12 FT S/N CFH0043276 & LATER, 14 FT S/N CFH0008809 & LATER (09) - CHASSIS

1

6835896

STRAP

2шт.

2

47530

LINK, CONNECTING

#50 CONNECTOR LINK

4шт.

3

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

BEARING - cylindrical

2шт.

4

700703786

CHAIN (AG)

#50 ROLLER CHAIN (15 pitches)

2шт.

5

700118104

SPACER

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

7

700119865

LINK

4шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

10

6171060

SPRING,11.25" L

ASSEMBLY

2шт.

700124666

SPRING,23" L

- assembly

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

14

700119866

BRACKET

ANGLE - spring mounting

2шт.

15

873513

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

1/2-13 X 6 FTC

2шт.

16

6146542

SPRING NUT

- spring

4шт.

287805

PLUG

NUT - spring

4шт.

17

700119868

STUD

2шт.

18

700127417

CAM

ASSEMBLY

2шт.

19

740803

BUSHING

BEARING - oilite

1шт.

20

6831069

PIN

WA

2шт.

21

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

700119856

SUPPORT

CHANNEL WA

1шт.
