(5-08) - HAY CONDITIONER PANEL ASSY., 12 FT S/N CFH0043276 & LATER, 14 FT S/N CFH0008809 & LATER

Запчасти Case IH 8360 (5-08) - HAY CONDITIONER PANEL ASSY., 12 FT S/N CFH0043276 & LATER, 14 FT S/N CFH0008809 & LATER (09) - CHASSIS

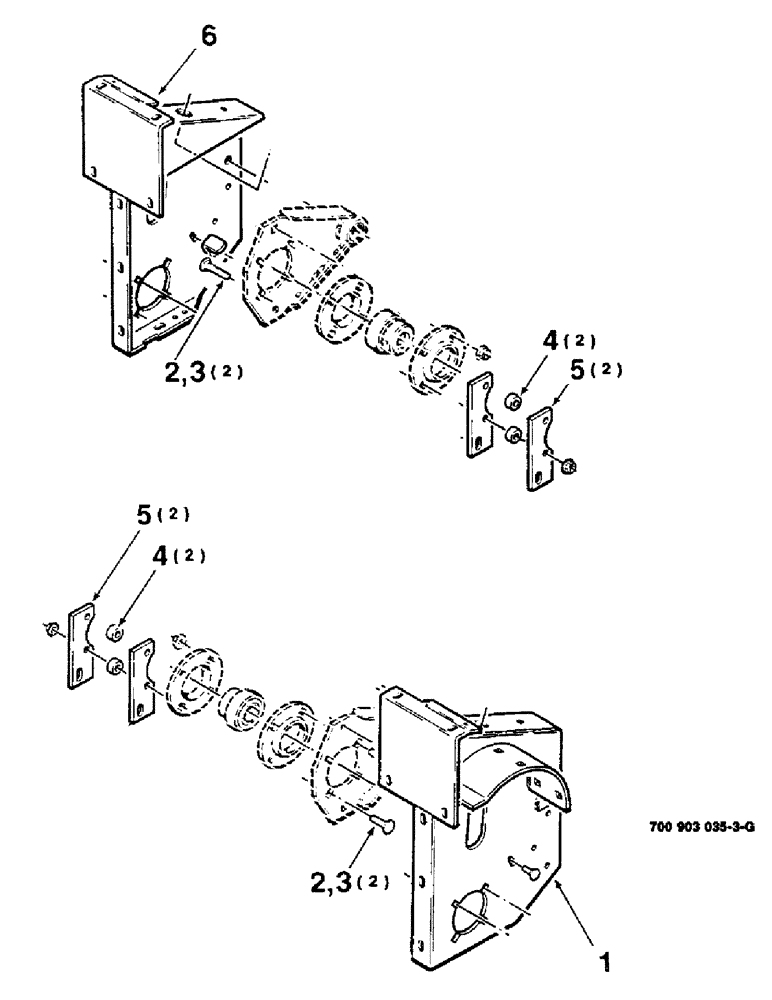

Схема запчастей Case IH 8360 - (5-08) - HAY CONDITIONER PANEL ASSY., 12 FT S/N CFH0043276 & LATER, 14 FT S/N CFH0008809 & LATER (09) - CHASSIS
3
4
3
2
4
1
2
5
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700119850

PANEL

- conditioner, right

1шт.

700130345

PANEL

- conditioner, right

1шт.

2

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

428938

SPACER

4шт.

5

700119854

SUPPORT

STRAP - mounting

4шт.

6

700130343

PANEL

- conditioner, left

1шт.

700130343

PANEL

- conditioner, left

1шт.
