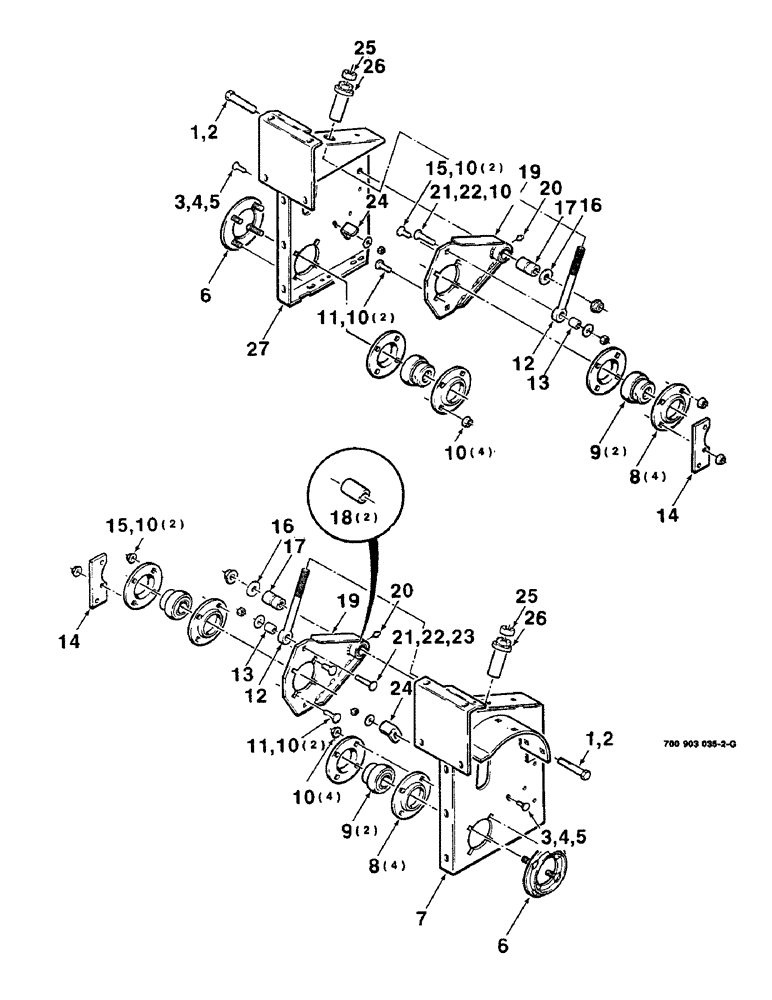

Запчасти Case IH 8360 (5-06) - HAY CONDITIONER PANEL ASSY., 12 FT S/N CFH0043001 - CFH0043275, 14 FT S/N CFH0008311 - CFH0008808 (09) - CHASSIS

1

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

2

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

700115294

RING

- grass

2шт.

7

700119850

PANEL

- conditioner, right

1шт.

8

50575

FLANGE

- bearing

8шт.

9

663559R91

BEARING, BALL,1.5" ID

BEARING - spherical (does not include collar)

4шт.

FOR THE COLLAR, ORDER P/N 455112R11.

1шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

17шт.

11

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

12

700108789

EYEBOLT

2шт.

13

700108790

SPACER

BUSHING

2шт.

14

700110201

STRAP

- mounting

2шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

16

6834402

WASHER

2шт.

17

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

2шт.

18

852467

BUSHING

- bronze

2шт.

19

700109404

ARM ASSY.

ARM ASSEMBLY - pivot

2шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

21

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

22

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

700109432

STOP

2шт.

25

425-1112

NUT,3/4"-16, G5

3/4-16 H

2шт.

26

700108786

STOP

- adjustment

2шт.

27

700130343

PANEL

- conditioner, left

1шт.
