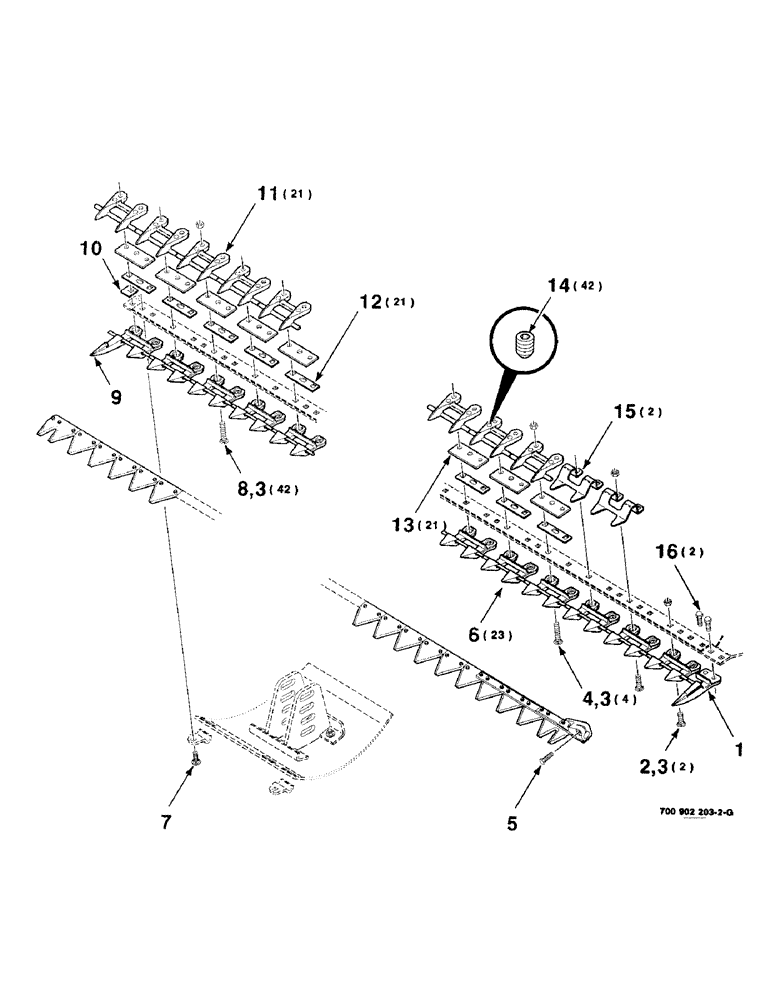

Запчасти Case IH 8360 (3-08) - ADJUSTABLE STUB GUARD ASSEMBLY, 12 FOOT (09) - CHASSIS

1

NLS

NO LONGER SERVICED

- single

1шт.

2

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

48шт.

4

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

4шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

6

49312

GUARD

- double, stub (Packaged 25 per box)

23шт.

7

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

1шт.

8

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

42шт.

9

6210652

GUARD

- double, end, right

1шт.

10

429464

SPACER

- cutterbar

1шт.

11

700702736

GUARD

- double stub, top adjustable

21шт.

12

700111956

PLATE

SHIM - lower

21шт.

13

700106256

PLATE

SHIM - upper

21шт.

14

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (With patch lock)

42шт.

15

6586622

GUARD

HOLDDOWN - guard

2шт.

16

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
