Запчасти Case IH 8360 (3-04) - SICKLE AND GUARD ASSEMBLIES, 12 FOOT (09) - CHASSIS

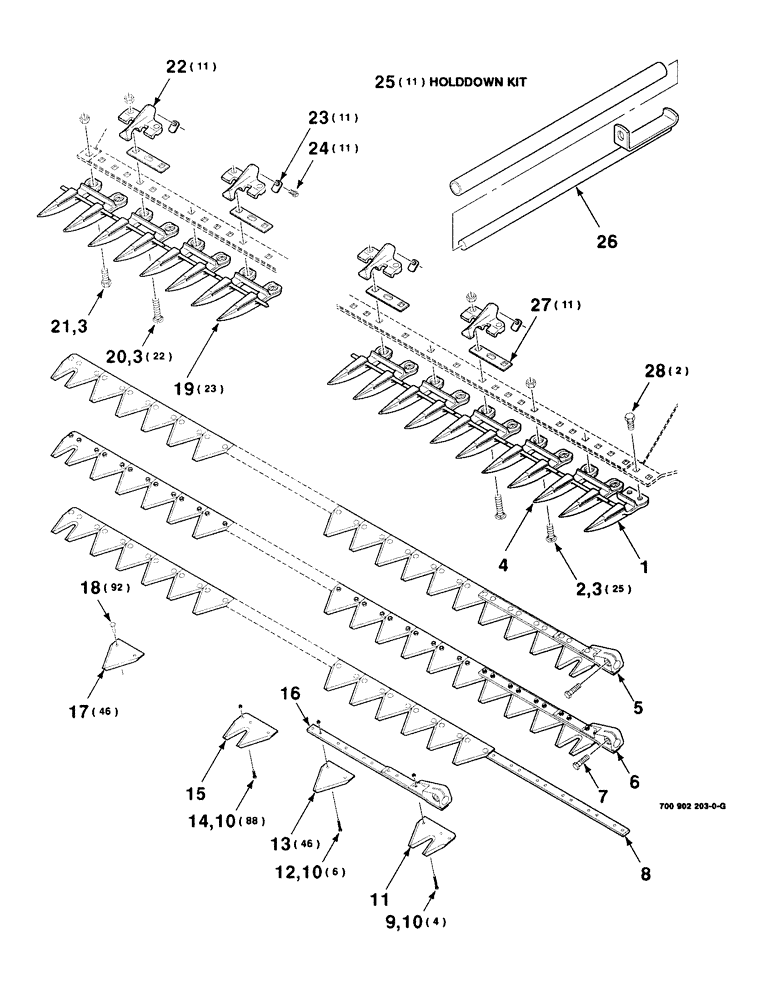

Схема запчастей Case IH 8360 - (3-04) - SICKLE AND GUARD ASSEMBLIES, 12 FOOT (09) - CHASSIS
16
11
4
25
10
3
17
10
6
21
5
1
28
10
27
26
3
22
8
23
12
2
18
3
24
7
14
13
15
9
20
19

Артикул

Название

Примечание

Количество

1

49395

GUARD

- single

1шт.

2

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

25шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

48шт.

4

700707464

GUARD

- double

1шт.

5

700709622

KNIFE ASSY

SICKLE ASSEMBLY, w/head, 12 ft (Bolted)

1шт.

6

700709622

KNIFE ASSY

SICKLE ASSEMBLY, w/head, 12 ft (Bolted)

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

8

700709622

KNIFE ASSY

SICKLE ASSEMBLY, w/o head, 12 ft (Bolted)

1шт.

Ref #8, part number 700709622 w/o head is no longer avialable. No demand for w/o head part.

1шт.

9

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLT (Box of 25 bolts and locknuts)

4шт.

10

1954816C1

LOCK NUT

#12-24 LOCKNUT

98шт.

11

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

12

700705297

KIT

#12-24 X 1 BOLT (Box of 25 bolts and locknuts)

6шт.

13

700705300

KNIFE SECTION

SECTION - top serrated, heavy duty .092 thick (Packaged 25 per box)

46шт.

14

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Box of 50 bolts and locknuts)

88шт.

15

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

16

700111003

KNIFE HEAD

SICKLE HEAD WA

1шт.

17

NLS

NO LONGER SERVICED

SICKLE SECTION - smooth, standard .105 thick (Packaged 25 per box)

46шт.

18

990817R91

RIVET

#5-1/2 X 9/16 ROUND HEAD RIVET (1 lb. box approx. 140 rivets)

92шт.

19

700700845

GUARD

GUARD - range super extended tang

23шт.

700707147

GUARD

- range

23шт.

20

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

22шт.

21

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

7/16 -14 X 1-1/4 C

1шт.

22

700117849

PACKAGE

HOLDDOWN

11шт.

Ref #22 is a holddown kit with hardware see Ref #25.

1шт.

23

700107019

KIT

WELD NUT

11шт.

Ref #23 is pa pkg of 10

1шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

11шт.

25

700117849

PACKAGE

HOLDDOWN KIT - with hardware (Includes items 20, 3, 24, 22 and 23)

11шт.

26

6135081

GUARD

STRAIGHTENER TOOL

1шт.

27

700111956

PLATE

SHIM

11шт.

28

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

Выбрано товаров: 32
