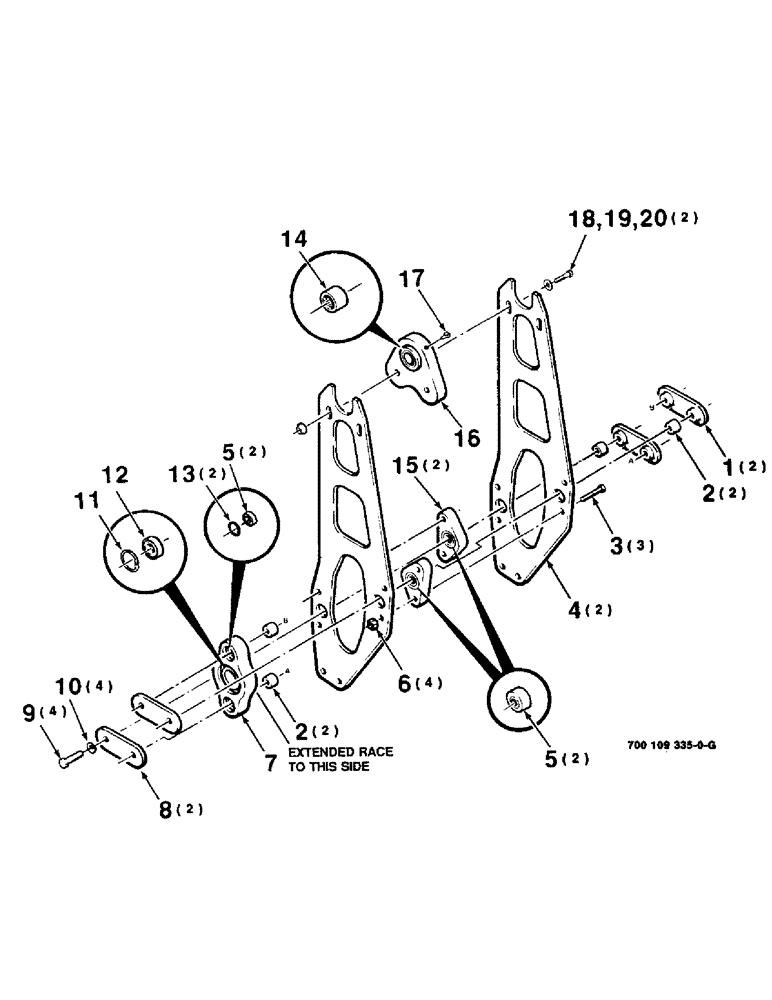

Запчасти Case IH 8360 (3-02) - SICKLE SWAYBAR ASSEMBLY (09) - CHASSIS

1

6582621

LINK

LINL - attachment, rear

2шт.

2

6583140

BUSHING,12.73mm ID x 16.94mm OD x 19.84mm L

- 9/16 I.D. x 7/8 long

4шт.

3

700705454

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 8

1/2-20 X 1-3/4 FTC GRADE 8

3шт.

4

700110722

PLATE

ARM - sickle drive

2шт.

5

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

4шт.

6

329-118

NUT,1/2"-20, G8

4шт.

7

6582662

BEARING HOUSING

PLATE BEARING ASSEMBLY

1шт.

8

700109713

LINK

- attachment, front

2шт.

9

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

11

740415

RING, SNAP

SNAP RING

1шт.

12

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

1шт.

13

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.

14

700705429

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 31.75mm W

BEARING - needle

1шт.

15

700122898

BEARING ASSY,17mm ID

BEARING BLOCK ASSEMBLY

2шт.

16

700110724

HOUSING

- pivot, bearing (Without needle bearing)

1шт.

17

700706202

PLUG

- zerk

1шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

19

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.
