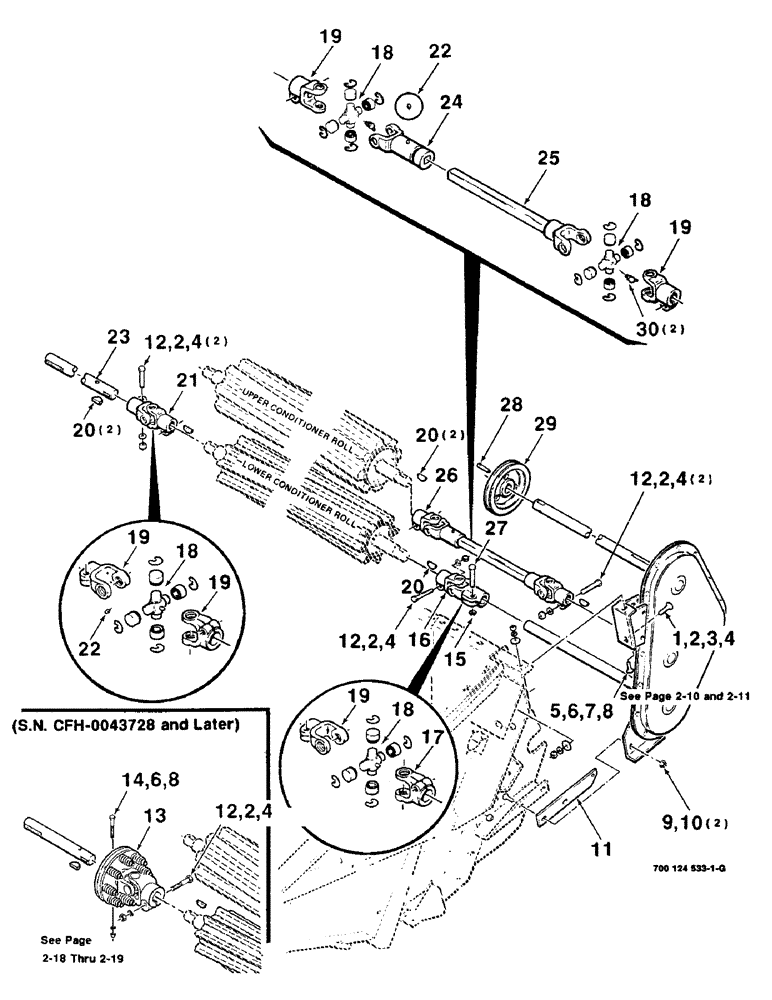

Запчасти Case IH 8360 (2-14) - HAY CONDITIONER DRIVE ASSEMBLY, 12 FOOT (09) - CHASSIS

1

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

3

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

7шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

11

700110756

STRAP

- mounting

1шт.

12

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

6шт.

13

700710451

CLUTCH

- u-joint

1шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

C Hex, 3/8"-16 x 2 3/4", G5

1шт.

15

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

16

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

17

700705535

YOKE

- clamp

1шт.

18

757443

U-JOINT SPIDER

JOURNAL REPAIR KIT

4шт.

19

757716

CLAMP

YOKE - clamp

5шт.

20

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

21

700705457

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

23

700121372

SHAFT

1шт.

24

700704888

YOKE

WITH TUBE

1шт.

25

700704887

YOKE

WITH SHAFT

1шт.

26

700704568

UNIVERSAL JOINT

DOUBLE U-JOINT ASSEMBLY

1шт.

27

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

28

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 X 5/16 X 2 GIB KEY

1шт.

29

700110623

PULLEY

SHEAVE

1шт.

30

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

ZERK - 65 degrees

2шт.
