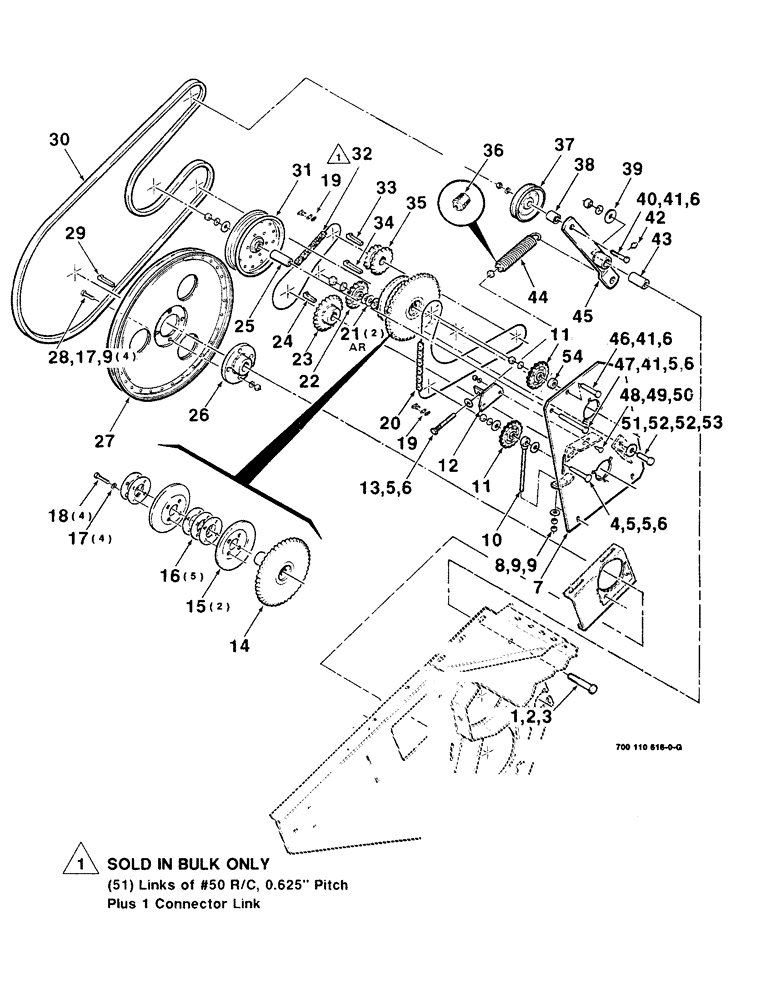

Запчасти Case IH 8360 (2-12) - REEL DRIVE ASSEMBLY (09) - CHASSIS

1

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

1шт.

2

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

3

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

4

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

7

700110644

PLATE

- mounting

1шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

9

425-106

NUT,3/8"-16, Cl 5

6шт.

10

700110653

ROD

DRAWBOLT

1шт.

11

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

2шт.

12

700110649

PLATE

- tightener

1шт.

13

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

1шт.

14

700110655

SPROCKET

WITH HUB, 44 tooth

1шт.

15

338244

SHEAVE

- half

2шт.

16

1661923

SHIM

- spacer

5шт.

17

492-11038

LOCK WASHER,3/8"

8шт.

18

28-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 8

3/8-24 X 1-1/2 C GR8 NP

4шт.

19

47530

LINK, CONNECTING

#50 CONNECTOR LINK

2шт.

20

851774

ROLLER

CHAIN - roller (10 foot bulk)

1шт.

21

52233

BUSHING

5/8 MACHINERY BUSHING

2шт.

22

631905R91

SPROCKET

- idler, 17 tooth

1шт.

23

700110568

SPROCKET

24 tooth

1шт.

24

249-1

KEY

1/4 X 1/4 X 1-3/4 GIB KEY

1шт.

25

700110572

SPACER

- idler, flat

1шт.

26

1660901

HUB

- sheave, reel

1шт.

27

51200248

SHEAVE

- drive, reel

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

29

761429

BUCKET TOOTH KEY

3/8 X 3/8 X 2 GIB KEY

1шт.

30

857219

V-BELT,0.88" W x 132.20" L

1шт.

31

54510

FRONT IDLER

FLAT IDLER

1шт.

32

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller (10 foot bulk)

1шт.

33

761155

BUCKET TOOTH KEY

1/4 X 1/4 X 2 GIB KEY

1шт.

34

61416

KEY

1/4 X 1/4 X 2-3/4 GIB KEY

1шт.

35

700110566

SPROCKET

- double, 14 & 16 tooth

1шт.

36

6189989

PLUG

- spring

1шт.

37

053553

PULLEY

V-IDLER

1шт.

38

383976

BUSHING

SPACER - v-belt

1шт.

39

495-21081

WASHER,3/4"

1шт.

40

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

43

700109663

BUSHING

- idler

1шт.

44

6189971

SPRING

ASSEMBLY

1шт.

45

700110588

ARM

- pivot

1шт.

46

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

47

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

1шт.

48

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

49

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

50

425-105

NUT,5/16"-18, G5

1шт.

51

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

52

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

2шт.

53

425-1010

NUT,5/8"-11, G5

1шт.

54

700110624

SPACER

- sprocket idler

1шт.
