Запчасти Case IH 8360 (8-12) - FILTER AND RELIEF VALVE ASSEMBLY (08) - HYDRAULICS

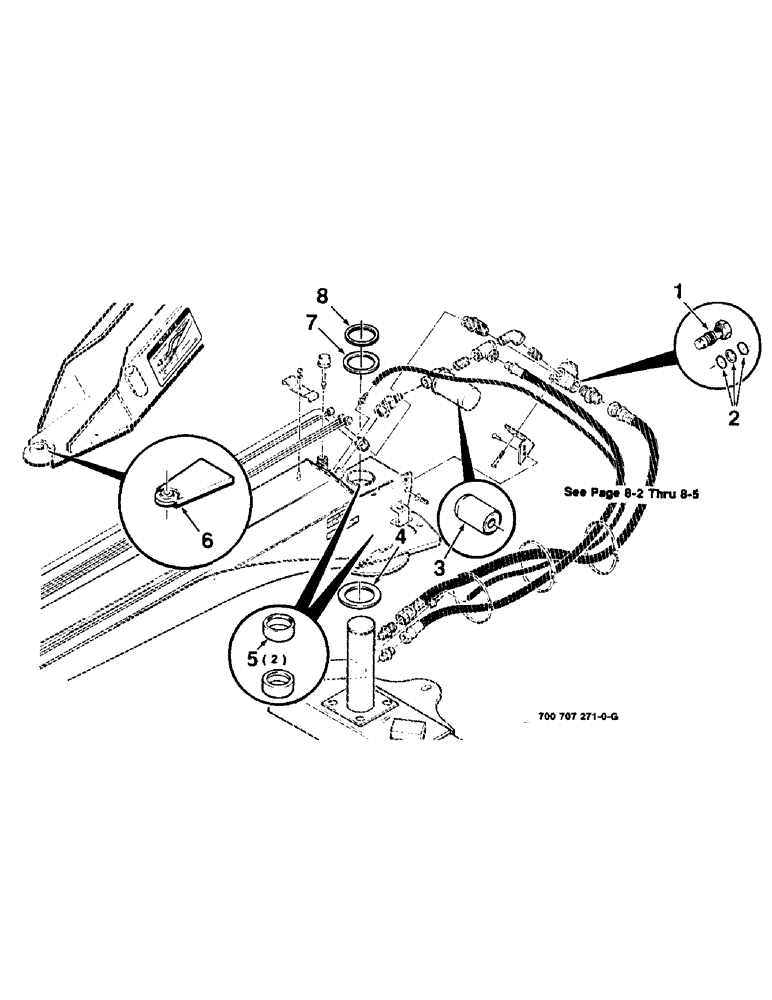

Схема запчастей Case IH 8360 - (8-12) - FILTER AND RELIEF VALVE ASSEMBLY (08) - HYDRAULICS
2
6
8
7
4
5
1
3

Артикул

Название

Примечание

Количество

1

700707363

VALVE

- relief

1шт.

2

7037633

O-RING KIT

KIT

1шт.

3

7033616

FILTER

ELEMENT - filter (S.N. CFH-0043001 thru 0090939 12 ft) (S.N. CFH-0008001 thru 0119116 14 ft)

1шт.

201021C1

ELEMENT

FILTER (S.N. CFH-0090940 and later 12 ft) (S.N. CFH-0119117 and later 14 ft)

1шт.

4

700115300

WASHER

WASHER - wear plate, lower

1шт.

5

7852379

BRONZE BUSHING,102.06mm ID x 114.4mm OD x 44.45mm L

BUSHING - bronze

2шт.

6

1661998

LARGE PLATE

HITCH PLATE - replacement

1шт.

7

700115299

WASHER

WASHER - wear plate, upper

1шт.

8

700706827

RING, SNAP

RETAINER RING

1шт.

Выбрано товаров: 9
