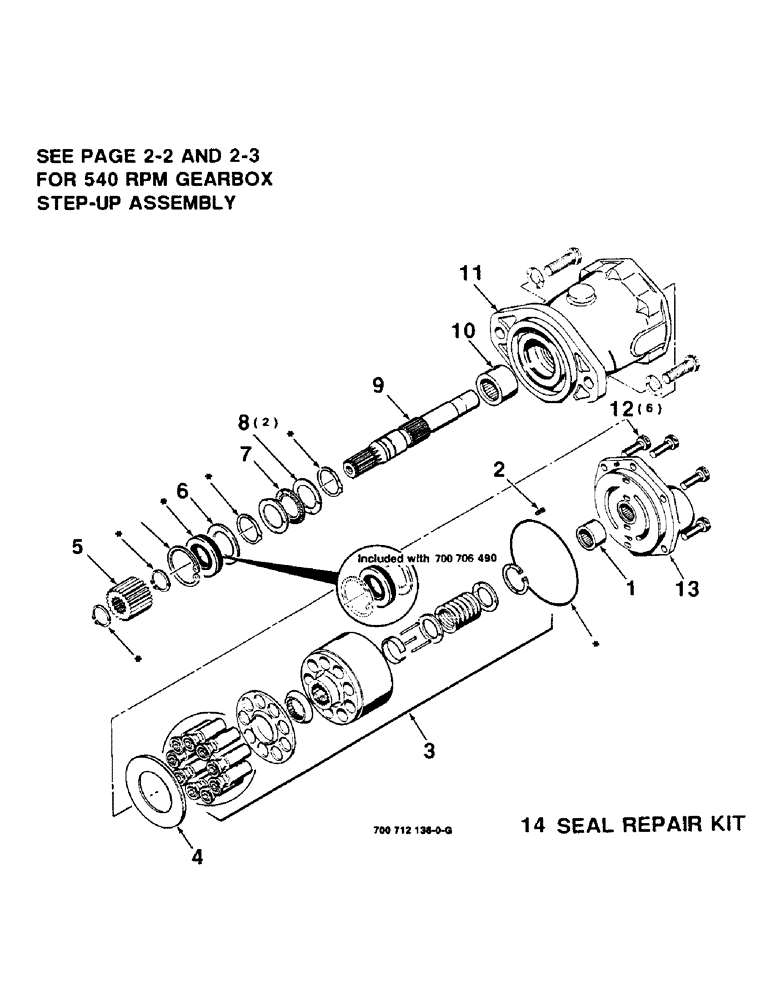

Запчасти Case IH 8360 (8-08) - HYDROSTATIC PUMP, PTO ASSEMBLY, 540 RPM (08) - HYDRAULICS

700700937

PUMP, HYDRAULIC

HYDROSTATIC PUMP ASSEMBLY COMPLETE

1шт.

277624R

REMAN-HYD PUMP

8360, 8370, Reman For New P/N 700700937

1шт.

277624C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - needle

1шт.

2

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

1шт.

3

50-2801T1

CYLINDER

ROTATING PISTON REPAIR KIT

1шт.

4

700700705

CAM

INSERT

1шт.

5

T55332

GEAR

- sun

1шт.

6

95-81147

WASHER,1.53" ID x 2.06" OD x 0.11" Thk

1шт.

7

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

1шт.

8

A52205

RACE,28.63mm ID x 44.2mm OD x 2.41mm Thk

THRUST RACE

2шт.

9

7037948

SHAFT

- drive

1шт.

10

700700949

NEEDLE BEARING

BEARING - needle

1шт.

11

7037922

HOUSING

ASSEMBLY (Includes needle bearing)

1шт.

12

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

13

700700706

LARGE PLATE

BACK PLATE ASSEMBLY (Includes needle bearing)

1шт.

14

700700710

SEAL KIT

REPAIR KIT, Includes items in art marked with asterisk.

1шт.
