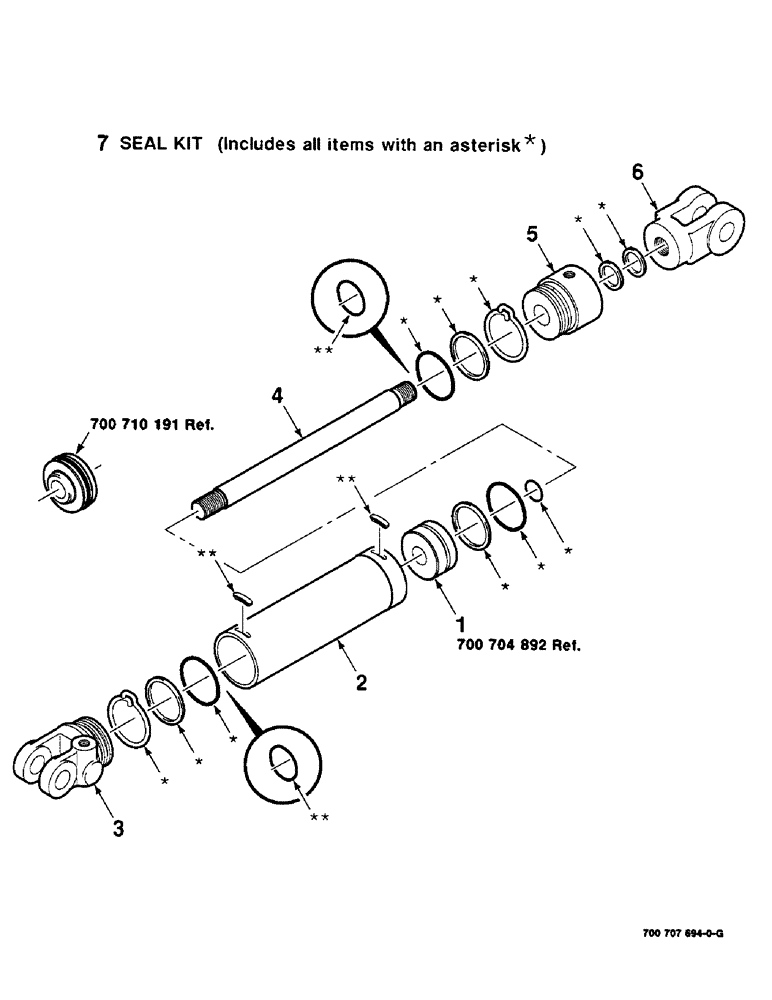

Запчасти Case IH 8350 (8-06) - HYD CYL ASSY, 700707694 COMPLETE, S.N CFH0006501 THRU CFH0007092, 2-3/4" DIA X 8" STROKE (08) - HYDRAULICS

700707694

CYLINDER

HYDRAULIC CYLINDER COMPLETE

1шт.

1

700700094

CYLINDER

PISTON - cylinder, superseded by: 700710241 and 700710242

1шт.

700710241

PISTON

- cylinder

1шт.

700710242

KIT

SEAL AND O-RING REPAIR KIT

1шт.

2

700707706

HARDWARE

BARREL

1шт.

700710243

SLEEVE CYLINDER

BARREL (Superseded by 700712100 and 700712119)

1шт.

700712100

SLEEVE CYLINDER

BARREL

1шт.

3

700700097

HEAD

- cylinder

1шт.

700710240

HEAD

- cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

700700093

BUSHING

BEARING - cylinder rod (Superseded by 700712100 and 700712119)

1шт.

700712119

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

700700098

SEAL KIT

AND O-RING REPAIR KIT, includes items in art marked with asterisk.

1шт.

700710242

KIT

SEAL AND O-RING REPAIR KIT, includes items in art marked with asterisk and double asterisks

1шт.
