(8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700704640 COMPLETE, 3-1/2" BORE DIA. X 8" STROKE

Запчасти Case IH 8350 (8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700704640 COMPLETE, 3-1/2" BORE DIA. X 8" STROKE (08) - HYDRAULICS

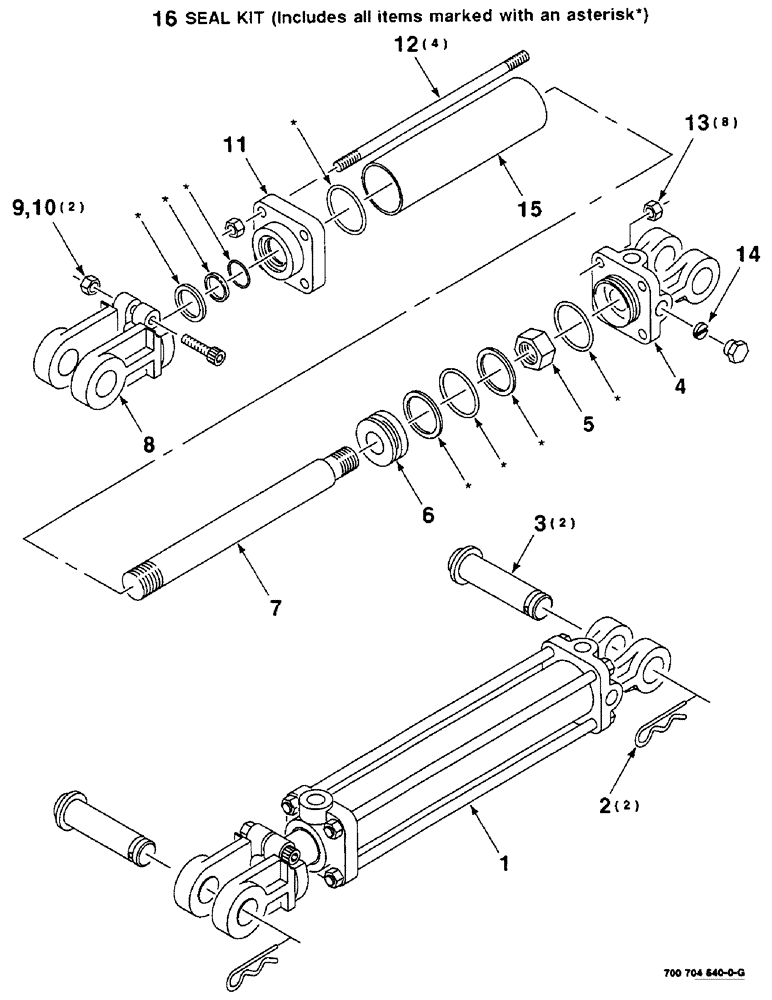

Схема запчастей Case IH 8350 - (8-04) - HYDRAULIC CYLINDER ASSEMBLY, TONGUE, 700704640 COMPLETE, 3-1/2" BORE DIA. X 8" STROKE (08) - HYDRAULICS
11
10
16
9
14
1
7
6
4
13
12
15
5
8
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704640

CYLINDER

HYDRAULIC CYLINDER COMPLETE Includes Ref. 2 and 3

1шт.

2

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

3

811134C1

PIN

- clevis

2шт.

4

8040263

BASE

CLEVIS - cylinder base

1шт.

5

7735087

LOCK NUT

- piston

1шт.

6

B17275

PISTON

1шт.

7

7735418

ROD

- piston

1шт.

8

T55022

CLEVIS

1шт.

9

7701667

HEX SOC SCREW,5/16" - 18 x 1 3/4"

5/16-18 X 1-3/4 HSHCS GRD 8

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

8040305

HEAD (CYLINDER)

HEAD - cylinder

1шт.

12

7735137

ROD

TIE - rod

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

14

700711231

ORIFICE

1шт.

15

7735129

TUBE

1шт.

16

B17232

SEAL

O-RING AND SEAL REPAIR KIT, Includes items in art marked with asterisk.

1шт.
