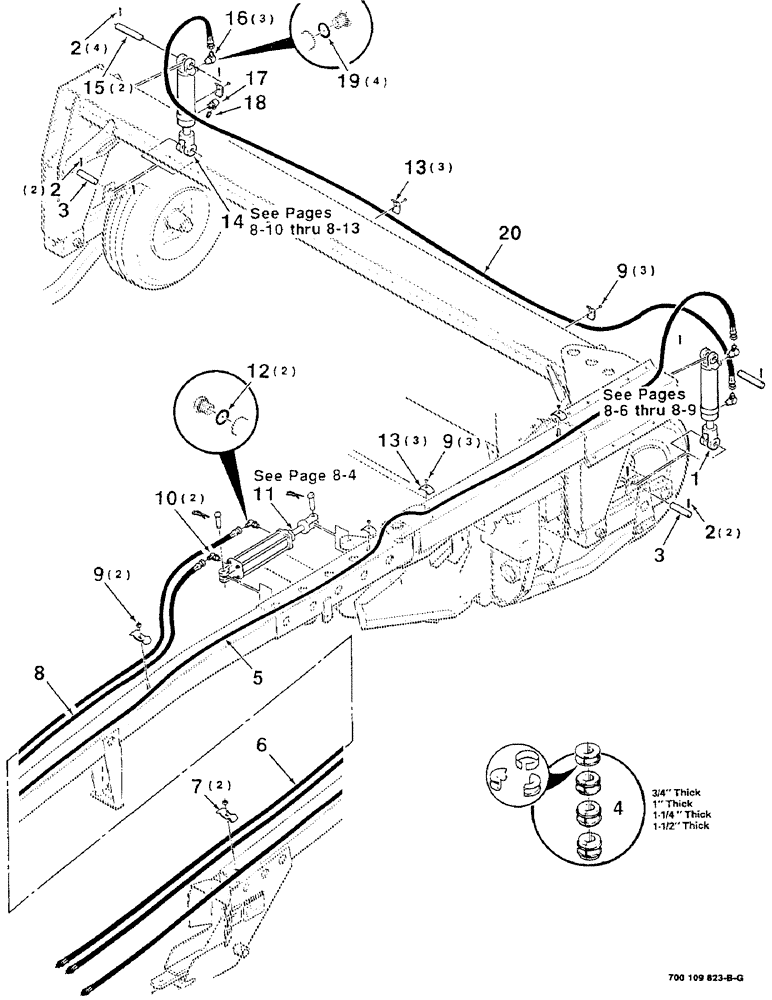

Запчасти Case IH 8350 (8-02) - HEADER LIFT AND TONGUE HYDRAULIC ASSEMBLIES (08) - HYDRAULICS

1

700707694

CYLINDER

- hydraulic, left (S.N. 1150-00001 thru 1150-21236)

1шт.

700712015

CYLINDER

- hydraulic, left (S.N. 1150-21237 and later)

1шт.

2

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

3

700109606

PIN

- cylinder, lower

2шт.

4

7737869

COLLAR

KIT - collar, safety stop

1шт.

5

700704638

HOSE

- hydraulic, primary

1шт.

6

700704629

HOSE

- hydraulic, tongue control

1шт.

7

451641

CLAMP

- hose

2шт.

8

700704624

HOSE

- hydraulic, tongue control

1шт.

9

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

5шт.

10

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

(Incl. item 12) 90º, 9/16"-18, 37º x 3/4"-16, O-Ring

2шт.

11

700704640

CYLINDER

- hydraulic, tongue control

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

13

6246995

CLAMP

- hose

6шт.

14

700704570

HYDRAULIC CYLINDER

CYLINDER - hydraulic, right (S.N. 1150-00001 thru 1150-21236)

1шт.

700712017

CYLINDER

- hydraulic, right (S.N. 1150-21237 and later)

1шт.

15

700109605

PIN

- cylinder, upper

2шт.

16

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

90 DEGREE ELBOW (Includes item 19)

3шт.

17

7791916

ELBOW

90 DEGREE ELBOW (Includes item 19)

1шт.

18

700704639

PLUG

BREATHER

1шт.

19

738468

O-RING

1шт.

20

700704636

HOSE

- hydraulic, cross

1шт.
