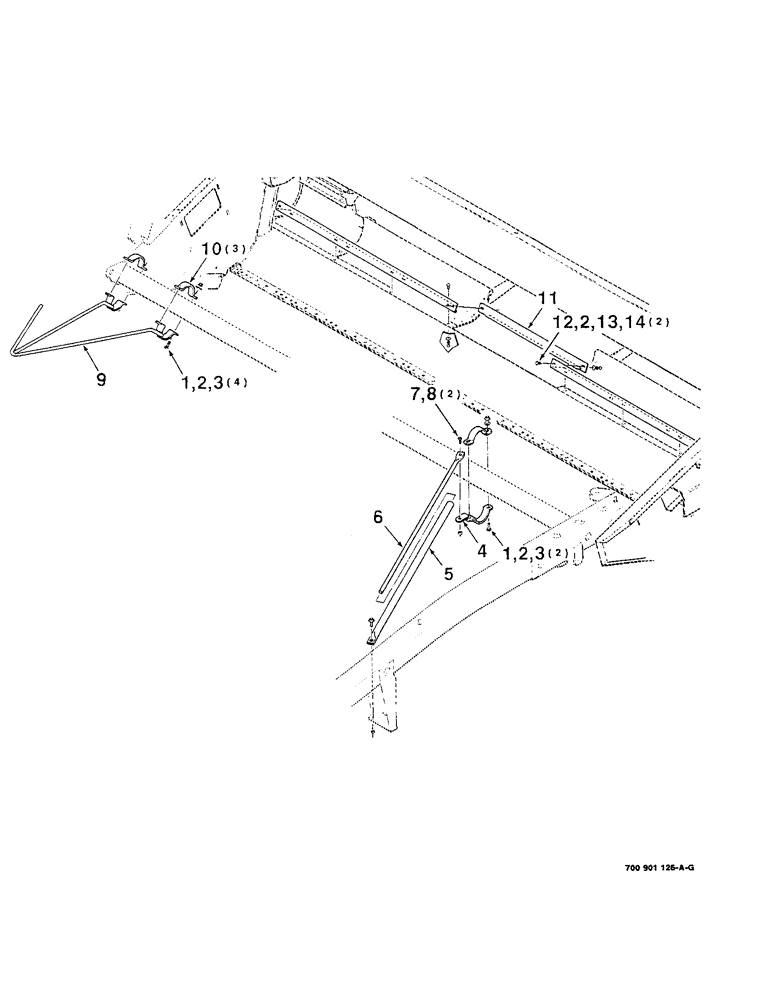

Запчасти Case IH 8350 (9-18) - CROP DIVIDER KIT (09) - CHASSIS

HK60269

KIT

CROP DIVIDER KIT COMPLETE

1шт.

1

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

6шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

4

700109849

CLAMP

(with lug)

1шт.

5

700109852

TUBE,25.4 mm OD, 1500 mm Length

- telescope, divider

1шт.

6

700109853

ROD

- telescope, divider

1шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

8

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

2шт.

9

700109851

DIVIDER

ROD - divider

1шт.

10

1662103

CLAMP

- half

3шт.

11

700111550

STRIPPER

- center

1шт.

12

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.
