(9-16) - 12 FOOT STUB GUARD KIT, ADJUSTABLE STUB ON STUB GUARD

Запчасти Case IH 8350 (9-16) - 12 FOOT STUB GUARD KIT, ADJUSTABLE STUB ON STUB GUARD (09) - CHASSIS

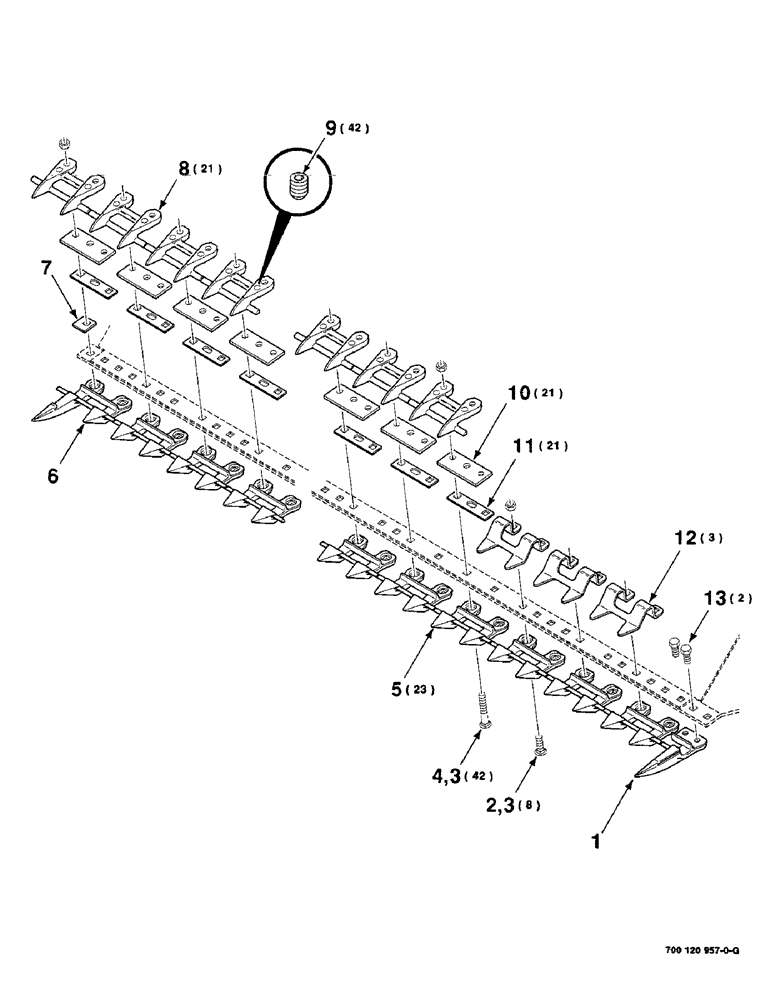

Схема запчастей Case IH 8350 - (9-16) - 12 FOOT STUB GUARD KIT, ADJUSTABLE STUB ON STUB GUARD (09) - CHASSIS
6
8
7
10
5
11
2
4
13
3
1
3
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700120957

GUARD

ADJUSTABLE STUB GUARD KIT COMPLETE

1шт.

1

NLS

NO LONGER SERVICED

- single

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

8шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

50шт.

4

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

42шт.

5

49312

GUARD

- double

23шт.

6

6210652

GUARD

- right

1шт.

7

429464

SPACER

- cutter bar

1шт.

8

700702736

GUARD

HOLDDOWN (Includes item 9)

21шт.

9

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

42шт.

10

700106256

PLATE

SHIM - upper

21шт.

11

700111956

PLATE

SHIM - lower

21шт.

12

6586622

GUARD

HOLDDOWN - high clearance

3шт.

13

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
