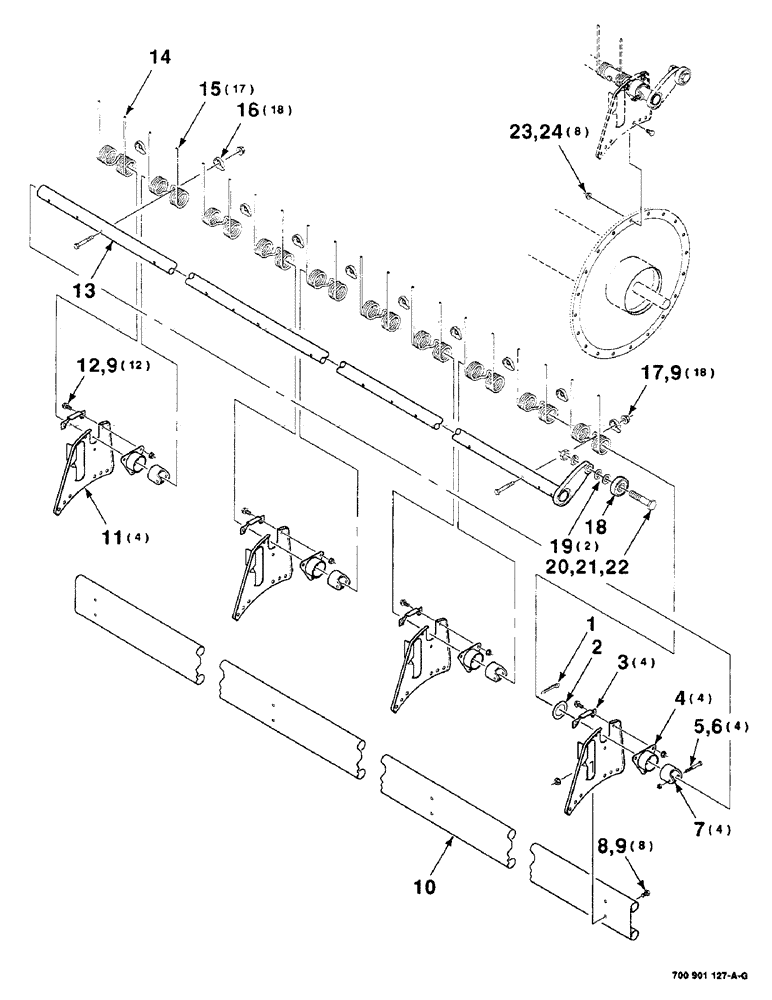

Запчасти Case IH 8350 (9-14) - EXTRA REEL BAT KIT, HK60270 COMPLETE (09) - CHASSIS

HK60270

REEL

EXTRA REEL BAT KIT COMPLETE

1шт.

1

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

2

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

3

6831986

COVER

- bearing

4шт.

4

6105621

FLANGE

HOUSING - bearing

4шт.

5

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

7

6105159

NYLON BEARING,1.75"

BEARING - tine

4шт.

8

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

8шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

38шт.

10

7017643

BAT

- reel

1шт.

11

700109349

SUPPORT

- bearing

4шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

13

700109364

TUBE

WA - tine

1шт.

14

7895642

TINE

- double

1шт.

15

750075

TINE

- double

17шт.

16

261024

CLIP

- tine

18шт.

17

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

18шт.

18

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

19

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

20

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 X 2-1/4 C SPECIAL

1шт.

21

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

22

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HEX JAM NUT GR 2

1шт.

23

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

8шт.

24

231-5146

FLANGE NUT,3/8"-16

8шт.
