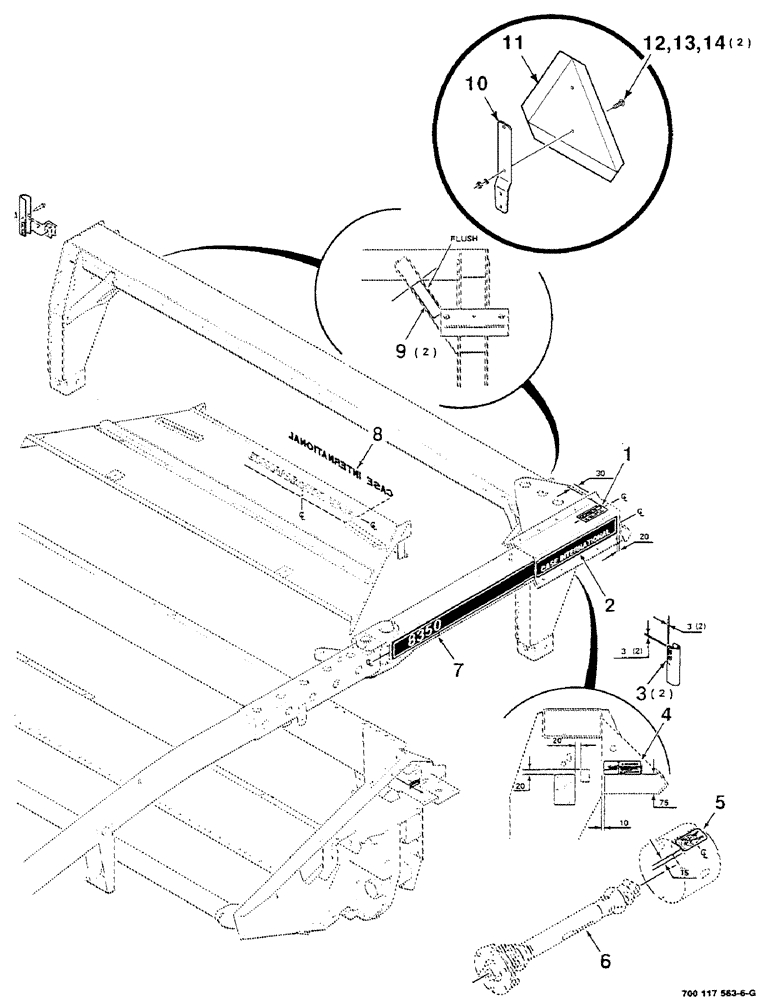

Запчасти Case IH 8350 (9-04) - DECALS AND LOCATION DIAGRAM, CONTINUED, S.N. CFH0006501 THRU CHF0006959 (09) - CHASSIS

1

779199

DECAL

- warning

1шт.

2

700708118

DECAL

- 8350 combo, left

1шт.

3

700706023

DECAL

- safety stop

2шт.

4

700713551

DECAL

- warning

1шт.

5

878116

DECAL

- information

1шт.

6

80672C1

DECAL

- danger

1шт.

7

700708117

DECAL

- Case International, left

1шт.

8

1973426C1

DECAL

- Case International

1шт.

9

878660

REFLECTOR

- red

2шт.

10

7020597

BRACKET

MOUNTING - spade

1шт.

11

7020589

EMBLEM

- SMV

1шт.

12

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

#10-24 X 3/4 CRPHMS

2шт.

13

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

225-14110

NUT,#10-24

2шт.
