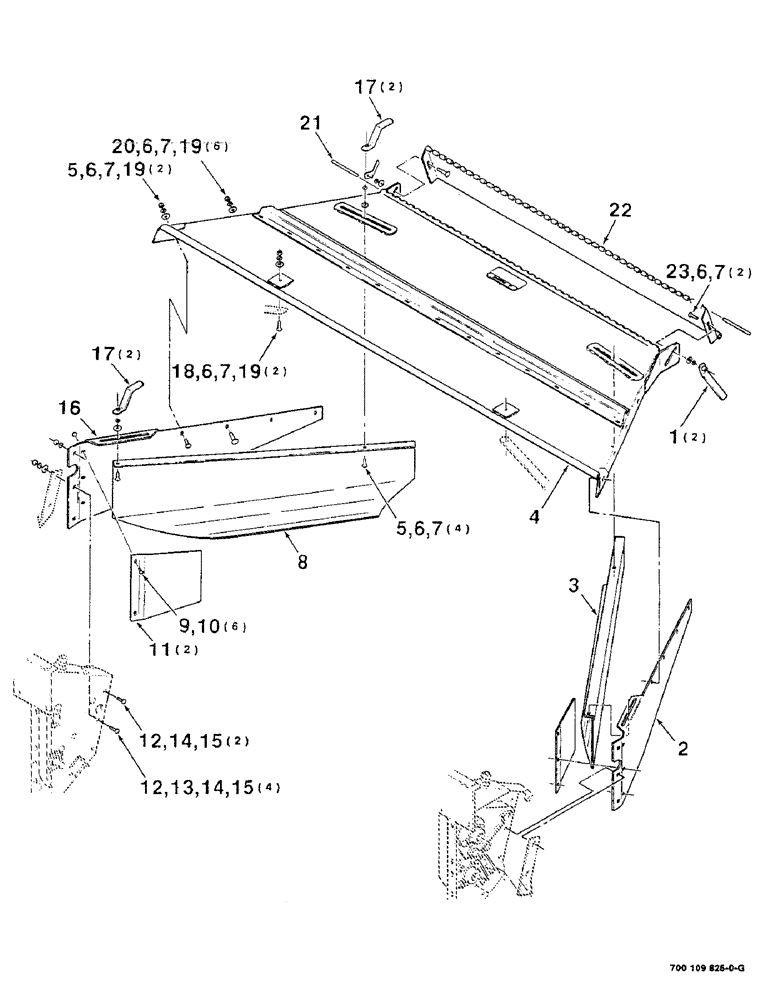

Запчасти Case IH 8350 (7-20) - WINDROW FORMING SHIELDS (09) - CHASSIS

1

6232532

NUT

- nut

2шт.

2

700109695

SHIELD

SUPPORT - shield, left

1шт.

3

700109840

SHIELD

- forming, left

1шт.

4

700109828

SHIELD

- top

1шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

16шт.

7

492-11038

LOCK WASHER,3/8"

16шт.

8

700109841

SHIELD

- forming, right

1шт.

9

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

1/4-20 X 1/2 RHSNB

6шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

11

700109693

SHIELD

- shingle

2шт.

12

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

6шт.

13

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

16

700109696

SHIELD

SUPPORT - shield, right

1шт.

17

6456750

HANDLE

NUT - lever

4шт.

18

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

19

425-106

NUT,3/8"-16, Cl 5

10шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

6шт.

21

700109838

ROD

PIN - hinge

1шт.

22

700109839

DEFLECTOR

- rear

1шт.

23

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSSNB

2шт.
