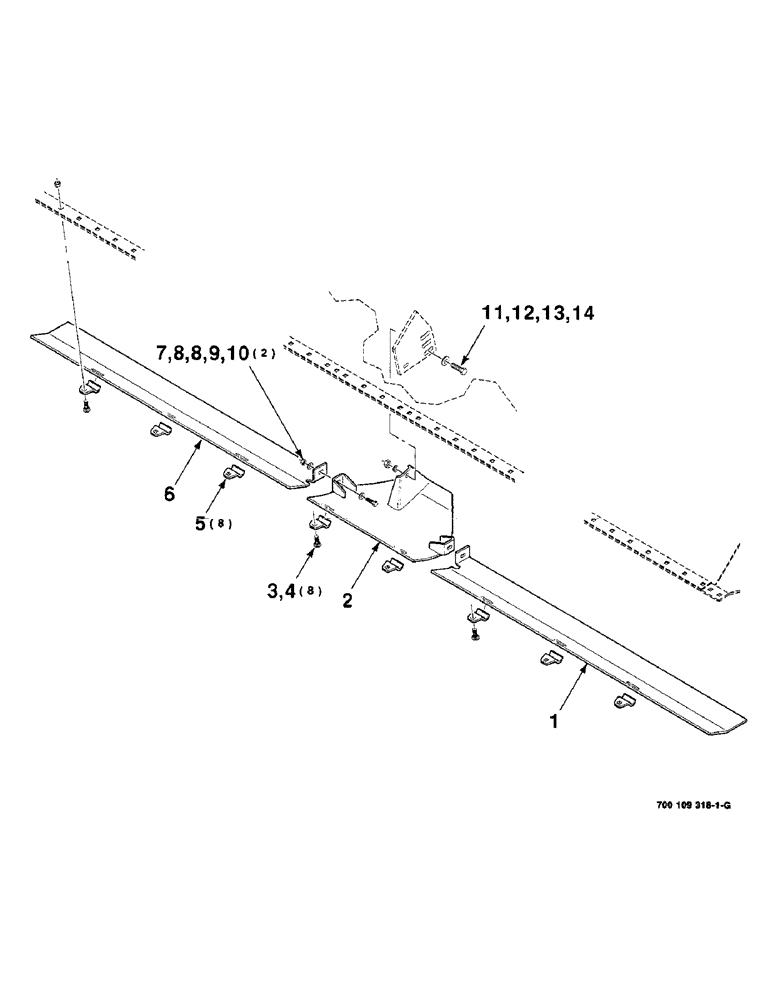

Запчасти Case IH 8350 (7-16) - HEADER WEAR PLATES AND CENTER SKID SHOE ASSEMBLIES (09) - CHASSIS

1

700118733

PLATE

- wear, left

1шт.

2

700115889

SHIELD

SKID SHOE WA, CENTER

1шт.

3

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

8шт.

4

425-107

NUT,7/16"-14, G5

7/16-14 H

8шт.

5

6453799

CLIP

8шт.

6

700118732

LARGE PLATE

PLATE - wear, right

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

12

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
