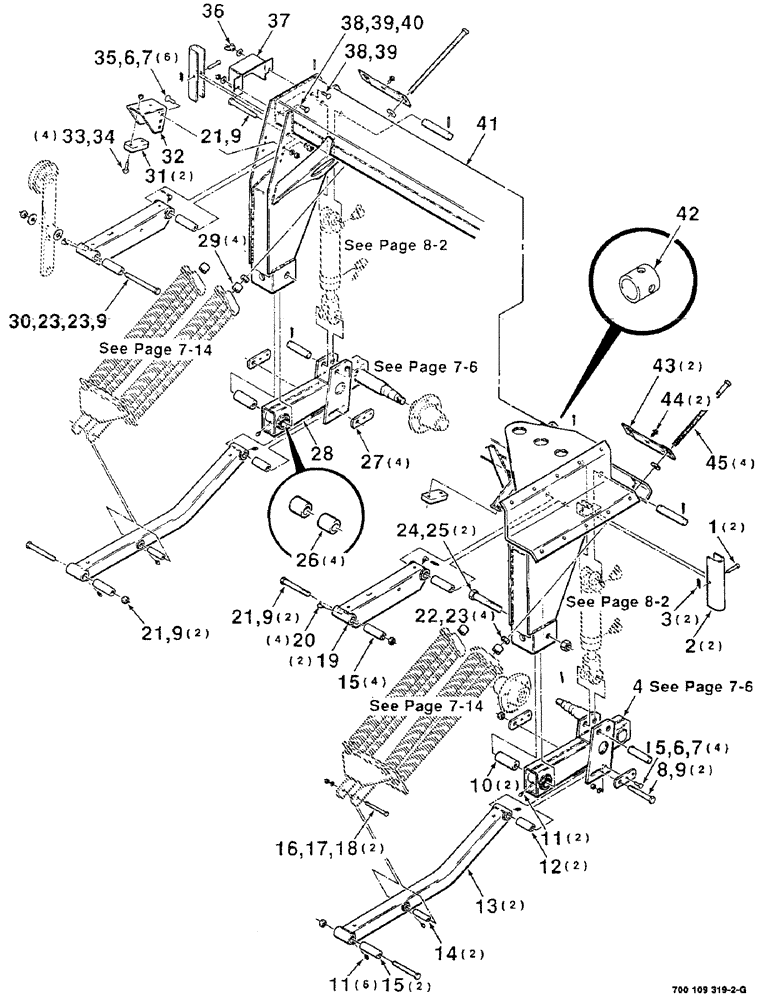

Запчасти Case IH 8350 (7-12) - HEADER SUPPORT FRAME AND FLOTATION ASSEMBLY (09) - CHASSIS

1

63644

CLEVIS PIN

3/8 X 2-1/8 CLEVIS PIN

2шт.

2

6251292

STOP

- safety

2шт.

3

T54573

PIN

.120 WIRE HAIRPIN COTTER

2шт.

4

700109882

STRUT

ASM. - left (Includes item 26)

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

6

492-11038

LOCK WASHER,3/8"

10шт.

7

425-106

NUT,3/8"-16, Cl 5

10шт.

8

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

2шт.

9

230-42112

LOCK NUT,3/4"-10, GA

3/4-10 HCLN

8шт.

10

700109608

BUSHING

2шт.

11

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

8шт.

12

700109607

BUSHING

2шт.

13

700109591

ARM

- lift, lower

2шт.

14

6180608

SPACER

- lift arm, lower

2шт.

15

6180574

BUSHING

6шт.

16

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

1/2-13 X 4-1/2 C

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

6500417

ARM

- lift, upper

2шт.

20

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

4шт.

21

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

5шт.

22

425-1012

NUT,3/4"-10, G5

3/4-10 H

4шт.

23

705566

WASHER

3/4 HARDENED PLAIN WASHER

6шт.

24

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1-8 X 6 C

2шт.

25

425-1016

NUT,1"-8, G5

2шт.

26

852459

BRONZE BUSHING

BUSHING - bronze

4шт.

27

700109609

STRAP

4шт.

28

700109883

STRUT

ASM. - right (Includes item 26)

1шт.

29

6455547

BUSHING

SPACER

4шт.

30

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

3/4-10 X 7-1/2 B

1шт.

31

700704747

CUSHION

- stop

2шт.

32

700109612

STOP

- right

1шт.

33

409-7524

BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl

5/16-18 X 1-1/2 HFSS

4шт.

34

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

4шт.

35

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

6шт.

36

129-410

WING NUT,3/8"-16

3/8-16 WING NUT

1шт.

37

700109613

CAP

- chamber

1шт.

38

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

39

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

40

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

41

700109539

FRAME

MAINFRAME - cross

1шт.

42

6227391

TUBE,2" OD, 1.88" Length

- mounting, jack

1шт.

43

700109610

RETAINER

CLIP - retainer

2шт.

44

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

5/16-18 X 3/4 HWHTCTS

2шт.

45

7773658

BOLT

3/4-10 X 14 B

4шт.
