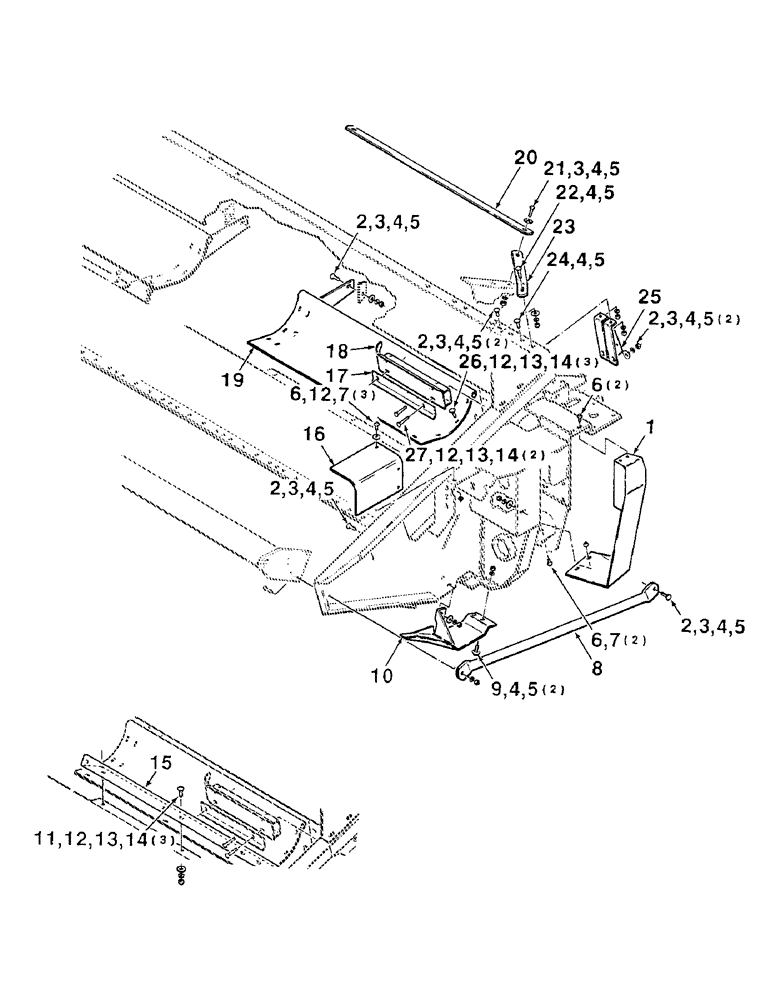

Запчасти Case IH 8350 (7-10) - HEADER STRIPPERS AND SHIELDS, LEFT (09) - CHASSIS

1

700109499

SHIELD

- sickle drive

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

4

492-11038

LOCK WASHER,3/8"

12шт.

5

425-106

NUT,3/8"-16, Cl 5

12шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

7шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

8

700109530

GUARD

- brace

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

10

700109532

DIVIDER

- left

1шт.

11

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

3шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

11шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

425-105

NUT,5/16"-18, G5

8шт.

15

700111551

STRIPPER

- 12 foot

1шт.

16

700109529

SHIELD

- rubber

1шт.

17

700109522

ANGLE

- stripper, left

1шт.

18

700109524

STRIPPER

- left

1шт.

19

700109507

PANEL

- left

1шт.

20

700109531

STRAP

- shield

1шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

22

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

23

700109513

STRAP

- shield, left

1шт.

24

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

25

700109623

SUPPORT

- corner

1шт.

26

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

3шт.

27

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

2шт.
