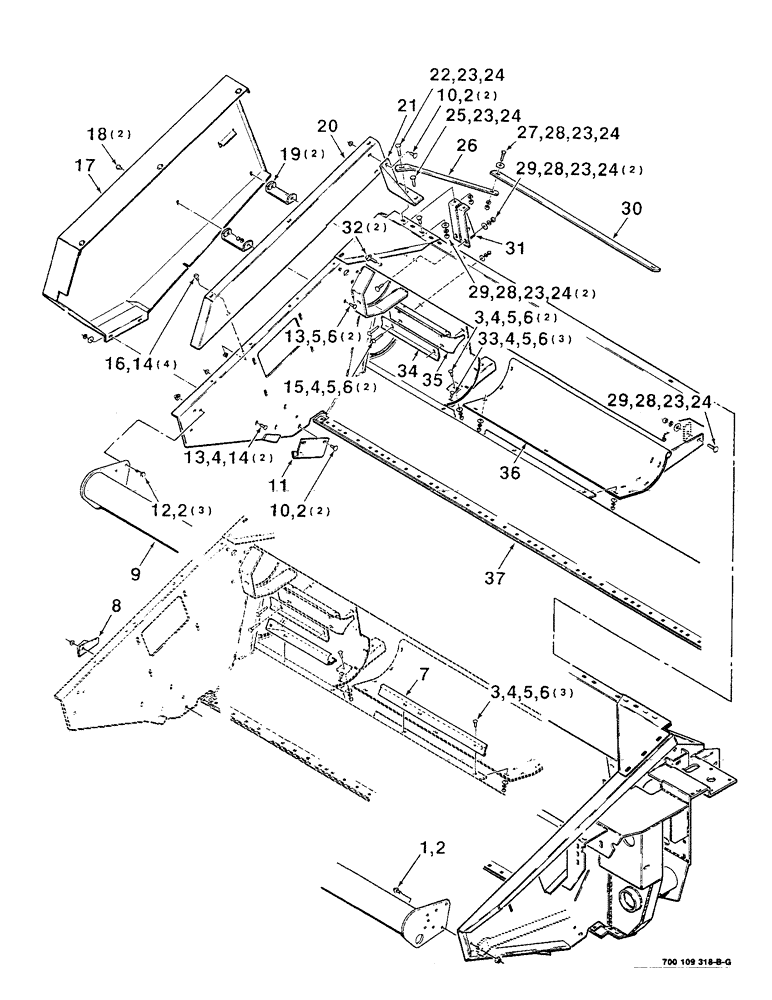

Запчасти Case IH 8350 (7-08) - HEADER FRAME, LEAN BAR AND SHIELD ASSEMBLIES (09) - CHASSIS

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

1шт.

2

231-5146

FLANGE NUT,3/8"-16

8шт.

3

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

5шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

6

425-105

NUT,5/16"-18, G5

12шт.

7

700111551

STRIPPER

- 12 foot

1шт.

8

700111394

SHIELD

- sickle

1шт.

9

700124284

BAR

LEAN BAR

1шт.

10

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

11

700122890

GUARD

- right

1шт.

12

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

3шт.

13

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

15

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

2шт.

16

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

17

700109517

SHIELD

- right

1шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

19

700109519

SUPPORT

- shield

2шт.

20

700109515

MOUNTING PARTS

MOUNT - shield

1шт.

21

700109516

GUSSET

- corner

1шт.

22

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

1шт.

23

492-11038

LOCK WASHER,3/8"

8шт.

24

425-106

NUT,3/8"-16, Cl 5

8шт.

25

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

26

700109514

STRAP

- shield, right

1шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

28

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

5шт.

30

700109531

STRAP

- shield

1шт.

31

700109623

SUPPORT

1шт.

32

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHTCTS

2шт.

33

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5, Full Thd

3шт.

34

700109523

ANGLE

- stripper, right

1шт.

35

700109527

STRIPPER

- right

1шт.

36

700109510

PANEL

- right

1шт.

37

700109441

SLIDE

HEADER FRAME WA

1шт.
