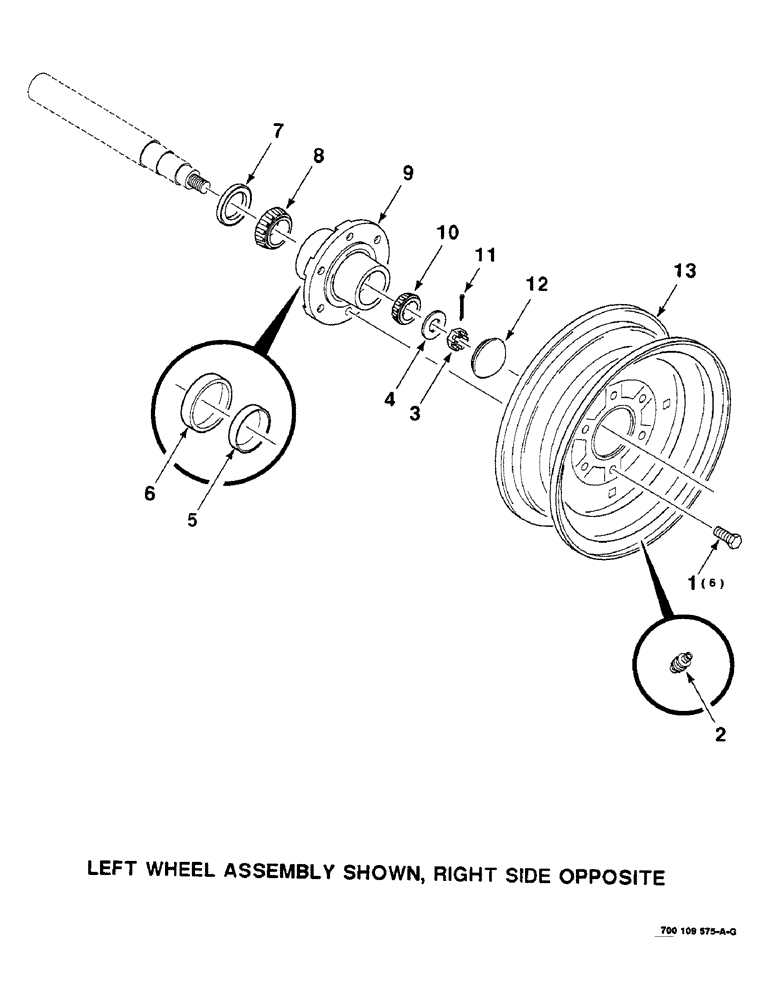

Запчасти Case IH 8350 (7-06) - WHEEL AND HUB ASSEMBLY, LEFT (09) - CHASSIS

1

T52730

WHEEL BOLT

9/16-18 X 1-1/8 WHEEL BOLT

6шт.

2

8027088

VALVE

NO-SHO VALVE

1шт.

3

425-1314

SLOTTED NUT,7/8"-14, G5

7/8-14 SLOTTED HEX NUT

1шт.

4

96-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

7/8 HARDENED PLAIN WASHER

1шт.

5

165964R1

BEARING CUP

CUP - bearing, outer

1шт.

6

130503H

BEARING CUP

CUP - bearing, inner

1шт.

7

491715R91

OIL SEAL

1шт.

8

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - cone

1шт.

9

026690

HUB

(Includes items 5 and 6)

1шт.

10

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1шт.

11

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

12

D143405

CAP

1шт.

13

A57879

RIM

WHEEL - 15 x 8 lb

1шт.
