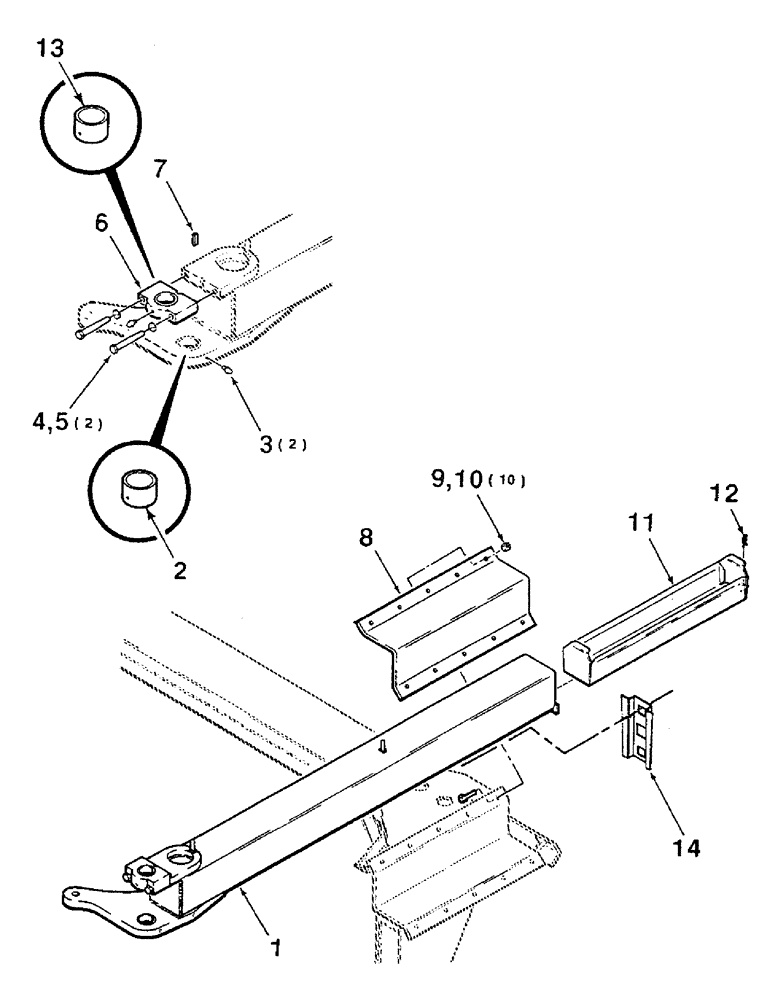

Запчасти Case IH 8350 (7-04) - TONGUE BEAM AND TOOL BOX ASSEMBLY (09) - CHASSIS

1

700109580

BEAM ASSY.

BEAM ASSEMBLY - side (Includes items 2, 4, 5, 6, 7 and 8)

1шт.

2

700704539

BUSHING,50.902 mm ID x 57.277 mm OD x 38.1 mm

SLEEVE - bearing

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

4

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

700109588

LUG

(Includes item 13)

1шт.

7

2023471

KEY

1шт.

8

700109543

CLAMP

- beam

1шт.

9

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8-11 X 1-3/4 C

10шт.

10

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

10шт.

11

700109615

BOX

TOOLBOX

1шт.

12

T54573

PIN

.125 WIRE HAIRPIN COTTER

1шт.

13

700706942

BRONZE BUSHING,50.902 mm ID x 57.239 mm OD x 38.1 mm

SLEEVE - bearing

1шт.

14

A59457

BRACKET

SOCKET - lamp brkt

1шт.
