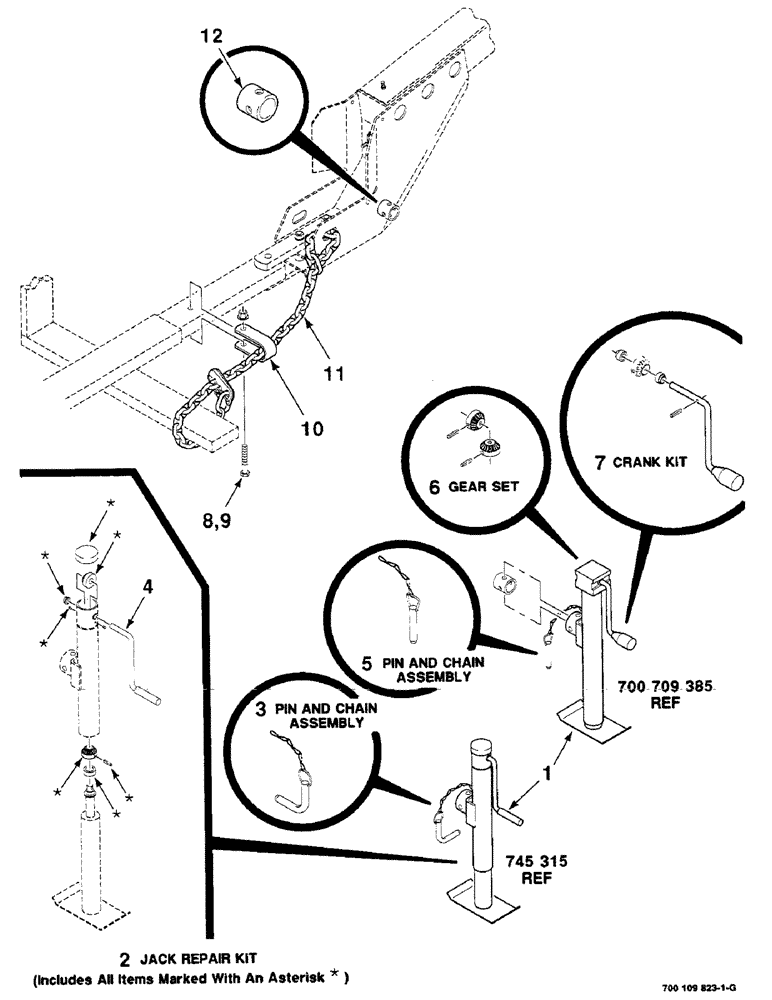

Запчасти Case IH 8350 (7-02) - JACK AND SAFETY CHAIN ASSEMBLY (09) - CHASSIS

1

745315

JACK

(Includes items 2 thru 5)

1шт.

700709385

JACK

(Incl. items 6 thru 8)

1шт.

2

7753858

PACKAGE, REPAIR

JACK REPAIR KIT

1шт.

3

756007

PIN

AND CHAIN ASSEMBLY

1шт.

4

755975

CRANK

HANDLE

1шт.

5

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

6

700702059

KIT

GEAR SET

1шт.

7

700702060

CRANKED HANDLE

CRANK KIT

1шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

9

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

10

148558C1

CLEVIS

- safety, chain

1шт.

11

700705598

CHAIN (CE)

SAFETY - chain

1шт.

12

6227391

TUBE,2" OD, 1.88" Length

- mounting, jack

1шт.
