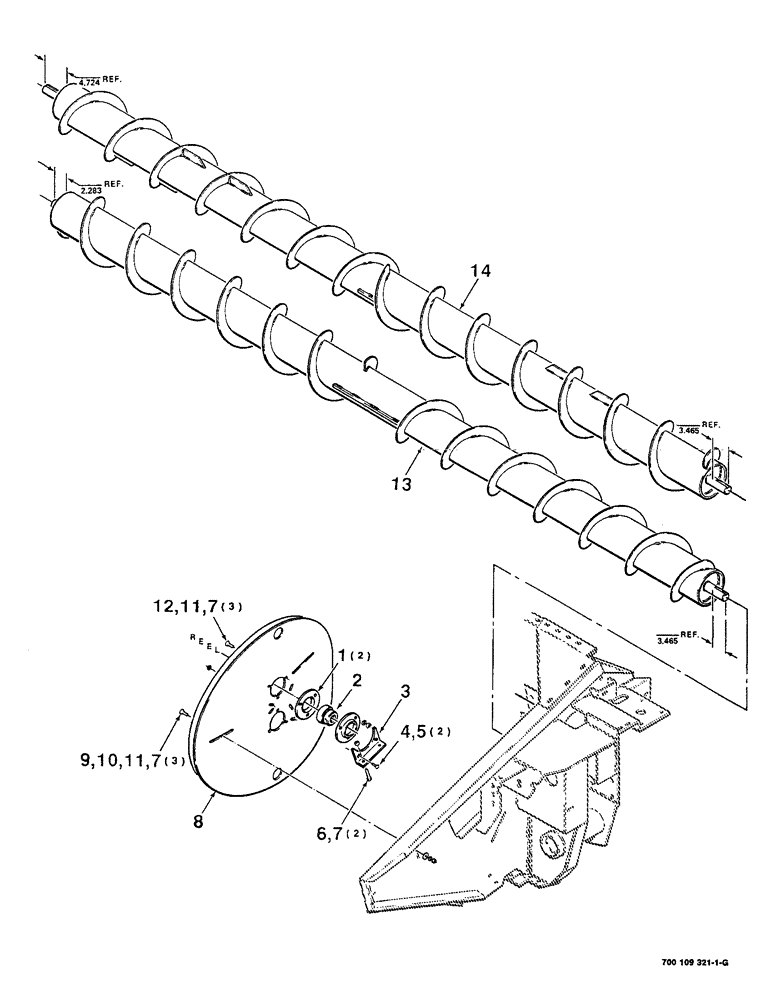

Запчасти Case IH 8350 (6-02) - AUGERS AND REEL CAM ASSEMBLY (09) - CHASSIS

1

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

2

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

1шт.

3

700109651

SUPPORT

- cam

1шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

6

113-232

BOLT,Hex, 3/8" - 16 x 2", Gr 5, Full Thd

2шт.

7

425-106

NUT,3/8"-16, Cl 5

8шт.

8

700120804

ECCENTRIC

CAM TRACK WA

1шт.

9

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

13

700124890

AUGER

WA - lower

1шт.

14

700124889

AUGER

WA - upper

1шт.
