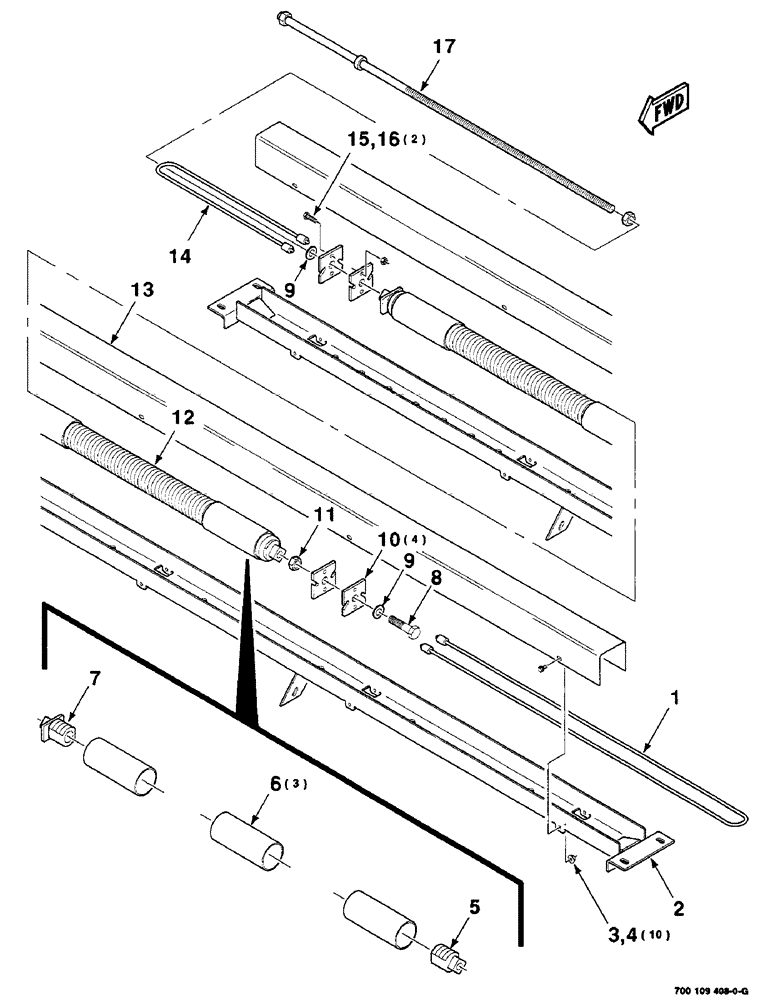

Запчасти Case IH 8350 (5-06) - HAY CONDITIONER SPRING ASSEMBLY (09) - CHASSIS

1

700109414

CABLE

ASSEMBLY - left

1шт.

2

700109409

GUIDE

WA

1шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

10шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

10шт.

5

451328

PLUG

- spring

1шт.

6

727537

TUBE,2.25" OD, 6" Length

- neoprene

3шт.

7

299230

PLUG

- spring

1шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

9

52233

BUSHING

5/8 X 14 GA. NRMB

2шт.

10

453563

BAR

PLATE - connector

4шт.

11

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 HEX JAM NUT

1шт.

12

453498

SPRING

ASSEMBLY (Includes items 5, 6 and 7)

1шт.

13

700109412

SHIELD

1шт.

14

700109415

CABLE

ASSEMBLY - right

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

16

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

17

6582977

BOLT

DRAWBOLT WA

1шт.
