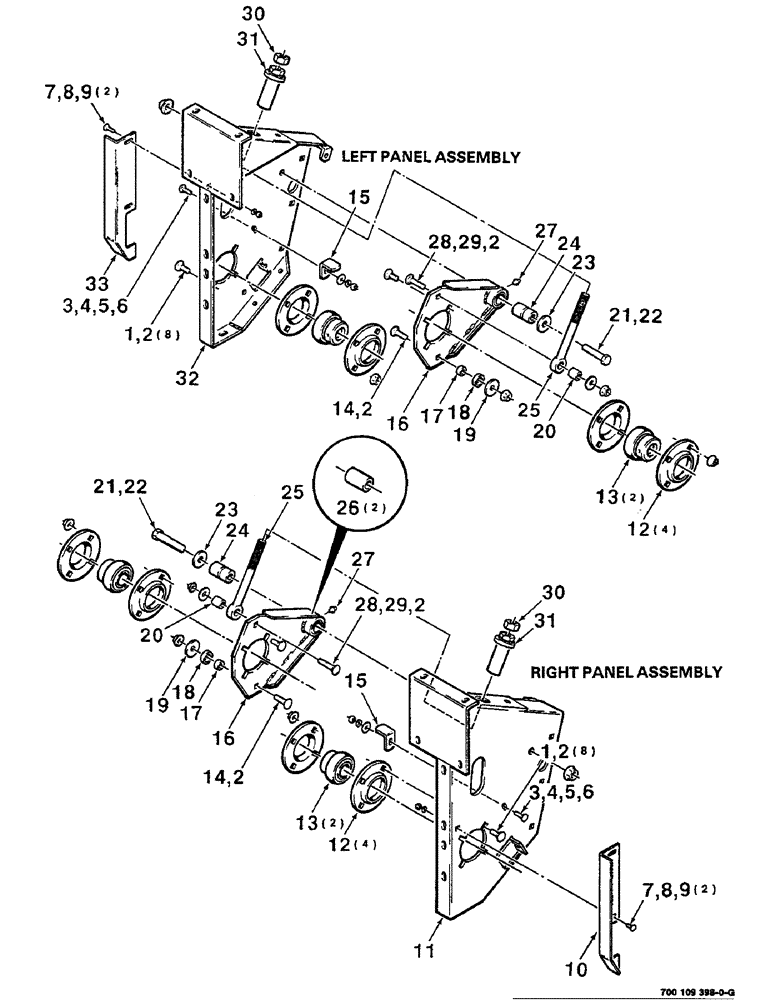

Запчасти Case IH 8350 (5-04) - HAY CONDITIONER PANEL ASSEMBLIES, LEFT AND RIGHT (09) - CHASSIS

1

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

16шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

20шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

425-105

NUT,5/16"-18, G5

4шт.

10

700109858

SHIELD

- right

1шт.

11

700109424

PANEL

WA - conditioner, right

1шт.

12

663562R1

FLANGE

- bearing

8шт.

13

663559R91

BEARING, BALL,1.5" ID

BEARING -spherical

4шт.

Item#13. P/N 663559R91 DOES NOT INCLUDE THE COLLAR.

1шт.

FOR THE COLLAR, ORDER P/N 455112R11.

1шт.

14

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

2шт.

15

700109432

STOP

- pivot

2шт.

16

700109404

ARM ASSY.

ARM ASSEMBLY - pivot (Includes item 26)

2шт.

17

6488894

SPACER

2шт.

18

6573851

SPACER

COLLAR - bushing

2шт.

19

76737

WASHER

2шт.

20

700108790

SPACER

BUSHING

2шт.

21

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

22

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

23

6834402

WASHER

2шт.

24

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

2шт.

25

700108789

EYEBOLT

2шт.

26

51200290

BUSHING,31.75mm ID x 38.1mm OD x 47.63mm L

- bronze

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

28

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

2шт.

29

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

30

425-1112

NUT,3/4"-16, G5

3/4-16 H

2шт.

31

700108786

STOP

- adjustment

2шт.

32

700109399

PANEL

WA - conditioner, left

1шт.

33

700109857

SHIELD

- left

1шт.
