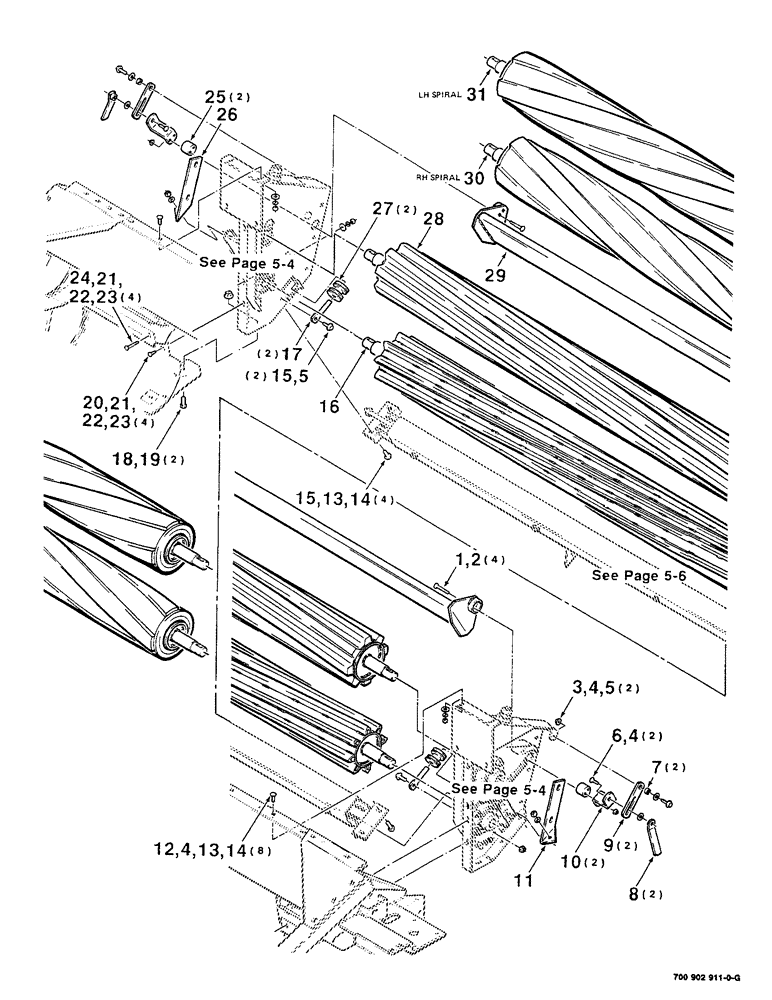

Запчасти Case IH 8350 (5-02) - HAY CONDITIONER ASSEMBLY (09) - CHASSIS

1

433-532

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 RHSNB

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

3

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

2шт.

4

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

2шт.

7

159806

SPACER

2шт.

8

6456750

HANDLE

2шт.

9

700109394

STRAP

2шт.

10

700109395

MOUNTING PARTS

STRAP

2шт.

11

700109396

REINFORCEMENT

- left

1шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

13

492-11038

LOCK WASHER,3/8"

12шт.

14

425-106

NUT,3/8"-16, Cl 5

12шт.

15

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

16

700115122

ROLLER

ROLL - lower

1шт.

17

6575484

PIN

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

20

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

21

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

23

425-105

NUT,5/16"-18, G5

8шт.

24

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

4шт.

25

700109437

PIVOT

SHAFT

2шт.

26

700109427

REINFORCEMENT

- right

1шт.

27

451336

PULLEY

- cable

2шт.

28

700706617

ROLL

- rubber, upper

1шт.

29

700115275

SHIELD

- upper

1шт.

30

700712170

ROLL

- Ticor, lower (RH spiral)

1шт.

31

700712169

ROLL

- Ticor, upper (LH spiral)

1шт.
