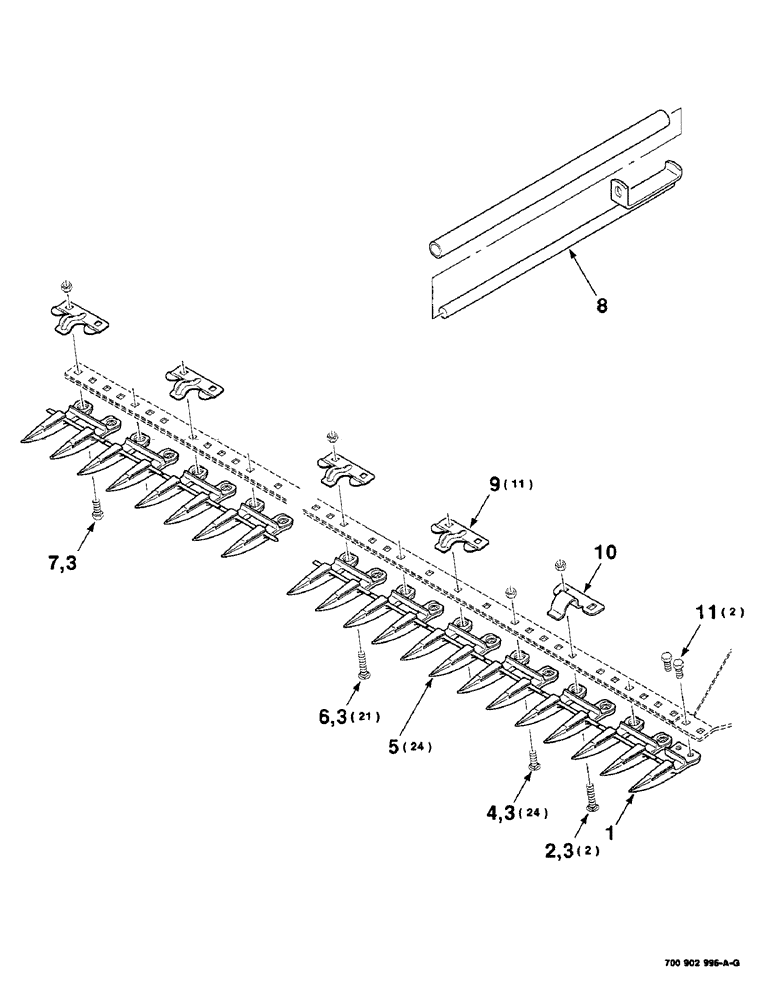

Запчасти Case IH 8350 (3-12) - HOLDDOWN AND GUARD ASSEMBLY, SUPER EXTENDED TANG (09) - CHASSIS

1

49395

GUARD

- single

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

2шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

48шт.

4

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

24шт.

5

700700845

GUARD

GUARD - double (Packaged 25 per box)

24шт.

6

111-416

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G5

7/16-14 X 2 RHSNB

21шт.

7

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16-14 X 2 C

1шт.

8

6135081

GUARD

STRAIGHTENER TOOL

1шт.

9

700111204

CLIP

HOLDDOWN (Packaged 25 per box)

11шт.

10

142984

HOLDER

HOLDDOWN - high clearance

1шт.

11

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
