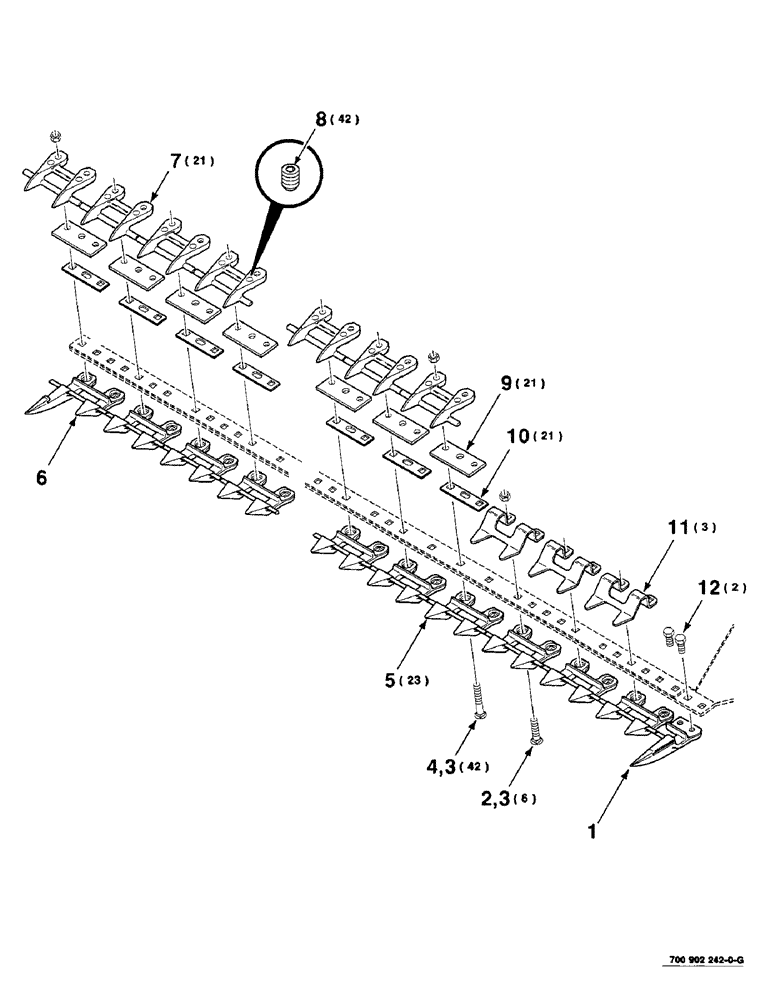

Запчасти Case IH 8350 (3-10) - HOLDDOWN AND GUARD ASSEMBLY, ADJUSTABLE STUB GUARD (09) - CHASSIS

1

NLS

NO LONGER SERVICED

- single

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

6шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

48шт.

4

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

42шт.

5

49312

GUARD

- double

23шт.

6

6210652

GUARD

- right

1шт.

7

700702736

GUARD

HOLDDOWN (Includes item 8)

21шт.

8

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

42шт.

9

700106256

PLATE

SHIM - upper

21шт.

10

700111956

PLATE

SHIM - lower

21шт.

11

6586622

GUARD

HOLDDOWN - high clearance

3шт.

12

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
