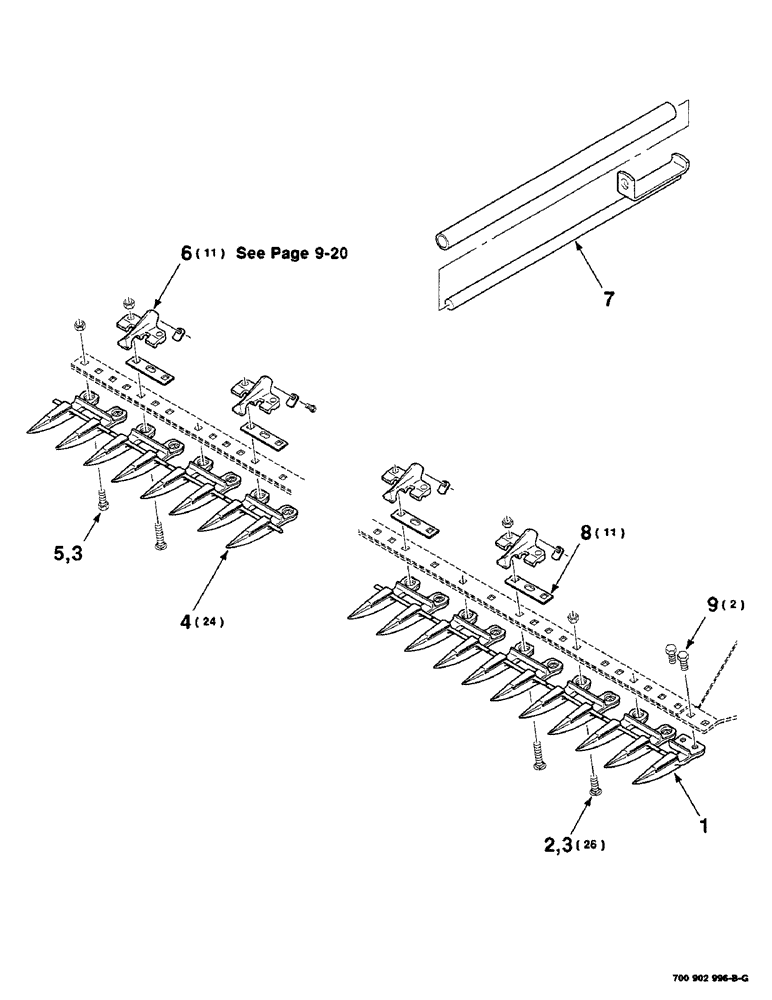

Запчасти Case IH 8350 (3-08) - HOLDDOWN AND GUARD ASSEMBLY, RANGE GUARD (09) - CHASSIS

1

49395

GUARD

- single

1шт.

2

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

26шт.

3

425-107

NUT,7/16"-14, G5

7/16-14 H

27шт.

4

700707147

GUARD

- double

24шт.

5

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16-14 X 2 C

1шт.

6

700117849

PACKAGE

HOLDDOWN - with hardware

11шт.

7

6135081

GUARD

STRAIGHTENER TOOL

1шт.

8

700111956

PLATE

SHIM

11шт.

9

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
