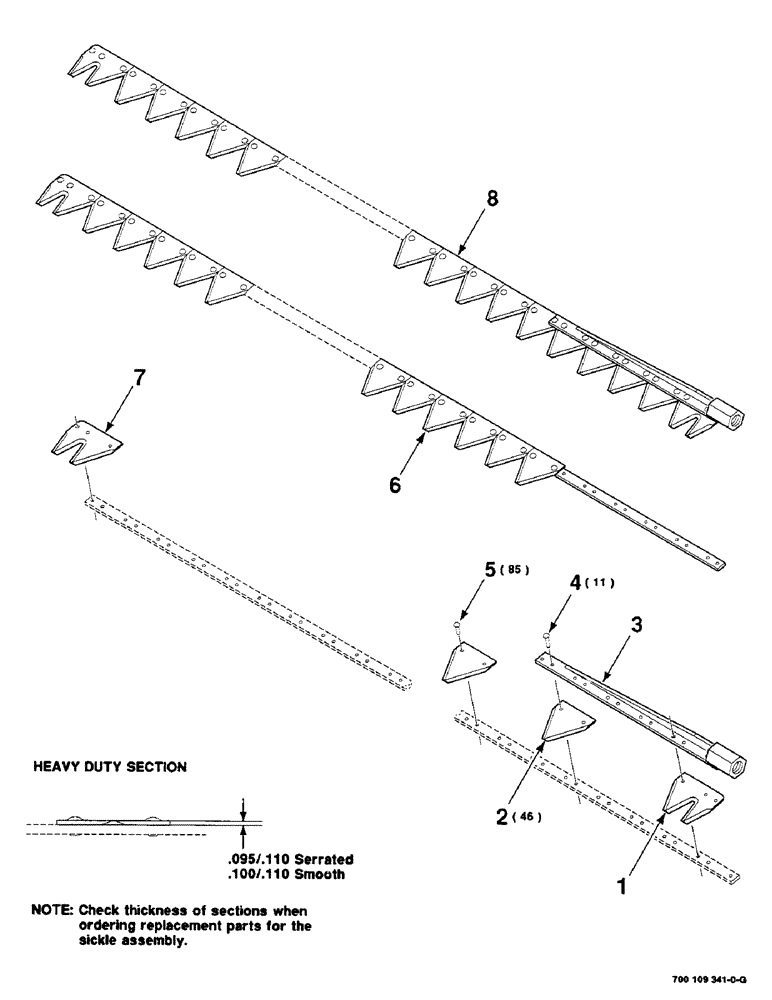

Запчасти Case IH 8350 (3-06) - SICKLE ASSEMBLY, RIVETED, HEAVY DUTY (09) - CHASSIS

1

748145

KNIFE SECTION

SECTION - double, left end

1шт.

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

2

NLS

NO LONGER SERVICED

SECTION - top serrated, heavy duty (Packaged 25 per box)

46шт.

49262

KNIFE SECTION

SECTION - sickle, smooth (Packaged 25 per box)

46шт.

3

6821078

HEAD

SICKLE HEAD WA

1шт.

4

51200830

RIVET

#5-1/2 X 7/8 ROUND HEAD RIVET (1 lb. box of approx. 140 rivets)

11шт.

5

990817R91

RIVET

#5-1/2 X 9/16 ROUND HEAD RIVET (1 lb. box of approx. 140 rivets)

85шт.

6

700109860

TOOL

SICKLE ASSEMBLY - without head (Heavy duty-top serrated sickle)

1шт.

700709583

KNIFE ASSY

SICKLE ASSEMBLY COMPLETE (Heavy duty-top serrated sickle)

1шт.

7

51200278

KNIFE SECTION

SECTION - double, right end

1шт.

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

8

700109341

KNIFE ASSY

SICKLE ASSEMBLY - with head (Heavy duty-top serrated sickle)

1шт.

700709583

KNIFE ASSY

SICKLE ASSEMBLY COMPLETE (Heavy duty-top serrated sickle)

1шт.

700109864

ASSEMBLY

SICKLE ASSEMBLY COMPLETE (Heavy duty-smooth sickle)

1шт.
