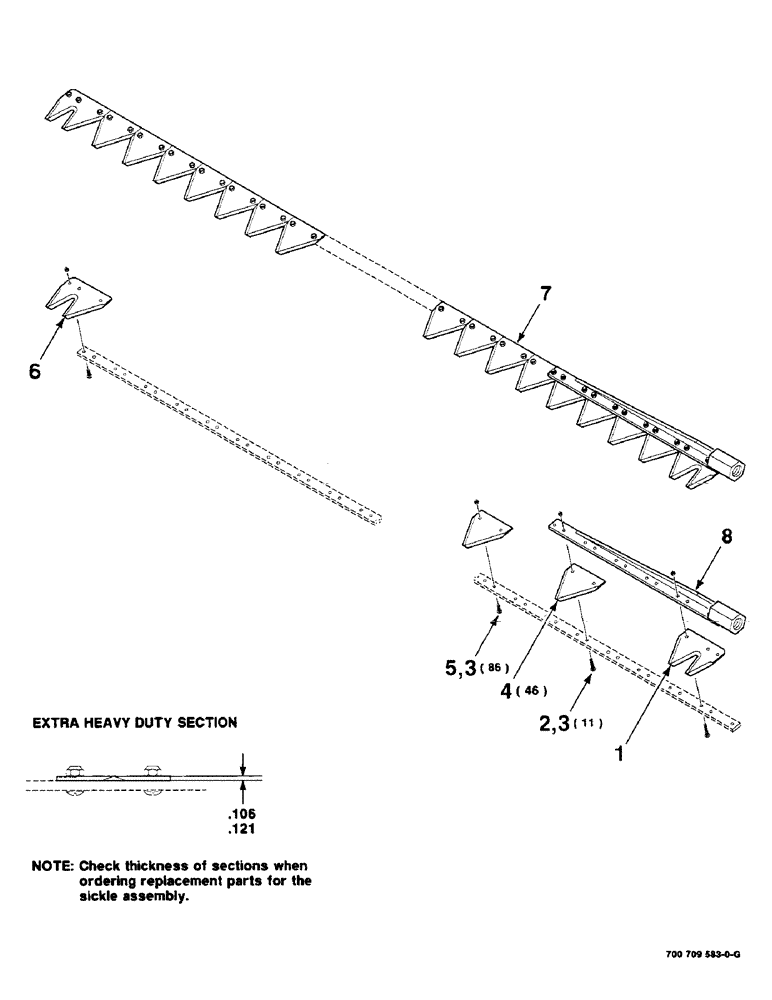

Запчасти Case IH 8350 (3-04) - SICKLE ASSEMBLY, BOLTED, EXTRA HEAVY DUTY (09) - CHASSIS

1

700705462

KNIFE SECTION

SECTION - double, left end

1шт.

2

700709663

BOLT AND NUT

#12-24 X 7/8 BOLT (Includes item 3) (Box of 25 bolts and locknuts)

11шт.

3

700705521

RIVET

#12-24 LOCKNUT

97шт.

4

700705300

KNIFE SECTION

SECTION - top serrated, heavy duty .092 thick (Packaged 25 per box)

46шт.

5

700705296

BOLT AND NUT

#12-24 X 5/8 BOLT (Includes item 3) (Box of 50 bolts and locknuts)

86шт.

6

700705463

KNIFE SECTION

SECTION - double, right end

1шт.

7

700709583

KNIFE ASSY

SICKLE ASSEMBLY COMPLETE (Sickle with bolted sections)

1шт.

8

6821078

HEAD

SICKLE HEAD WA

1шт.
