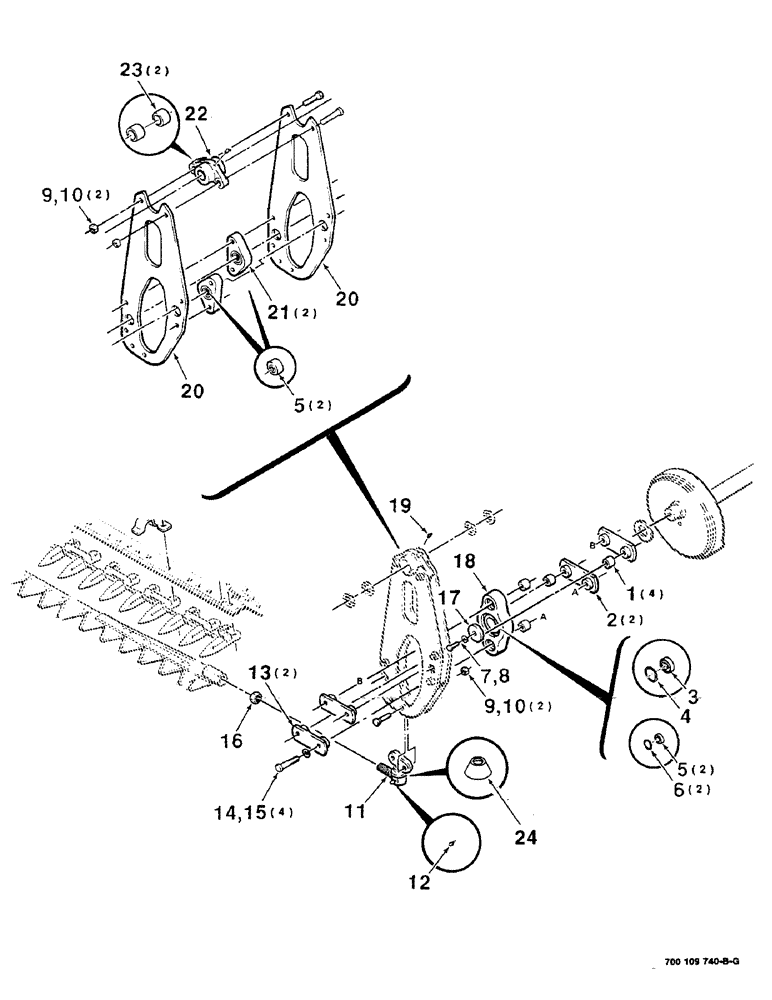

Запчасти Case IH 8350 (3-02) - SICKLE SWAYBAR ASSEMBLY (09) - CHASSIS

1

6583140

BUSHING,12.73mm ID x 16.94mm OD x 19.84mm L

- 9/16 I.D. x 7/8 long

4шт.

2

6582621

LINK

- attachment

2шт.

3

611921R92

BEARING, ROLLER, CYL,34.92mm ID x 72mm OD x 19mm W

- cylindrical

1шт.

4

740415

RING, SNAP

SNAP RING

1шт.

5

7714629

BALL BEARING,17mm ID x 40mm OD x 20.64mm W

BEARING - cylindrical

4шт.

6

100-21156

SNAP RING,1.562", Int, #156

Ring, Snap, 1.562", Int, #156

2шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

8

492-11038

LOCK WASHER,3/8"

1шт.

9

51200269

BOLT

1/2-20 X 1-3/4 WHEEL BOLT

4шт.

10

425-118

NUT,1/2"-20, G5

1/2-20 H

4шт.

11

700109339

KNIFE HEAD

SOCKET ASSEMBLY (Includes item 12)

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

13

700109713

LINK

- attachment

2шт.

14

114-410

BOLT,Hex, 1/2" - 20 x 2", Gr 5

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

7774417

LOCK NUT

7/8-18 HEX JAM NUT

1шт.

17

6581052

WASHER

1шт.

18

6582662

BEARING HOUSING

PLATE BEARING ASSEMBLY (Includes items 3, 4, 5 and 6)

1шт.

19

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

20

700109338

SUPPORT

PLATE ARM, SICKLE DRIVE

2шт.

21

700122898

BEARING ASSY,17mm ID

BEARING BLOCK ASSEMBLY (Includes item 5)

2шт.

22

700109337

PIVOT

BEARING ASSEMBLY (Without bearings)

1шт.

23

LS3389S

NEEDLE BEARING,Needle, 31.75mm ID x 38.1mm OD x 25.4mm W

- needle, 1-1/4 I.D. x 1 long

2шт.

24

700702253

SEAL

1шт.
