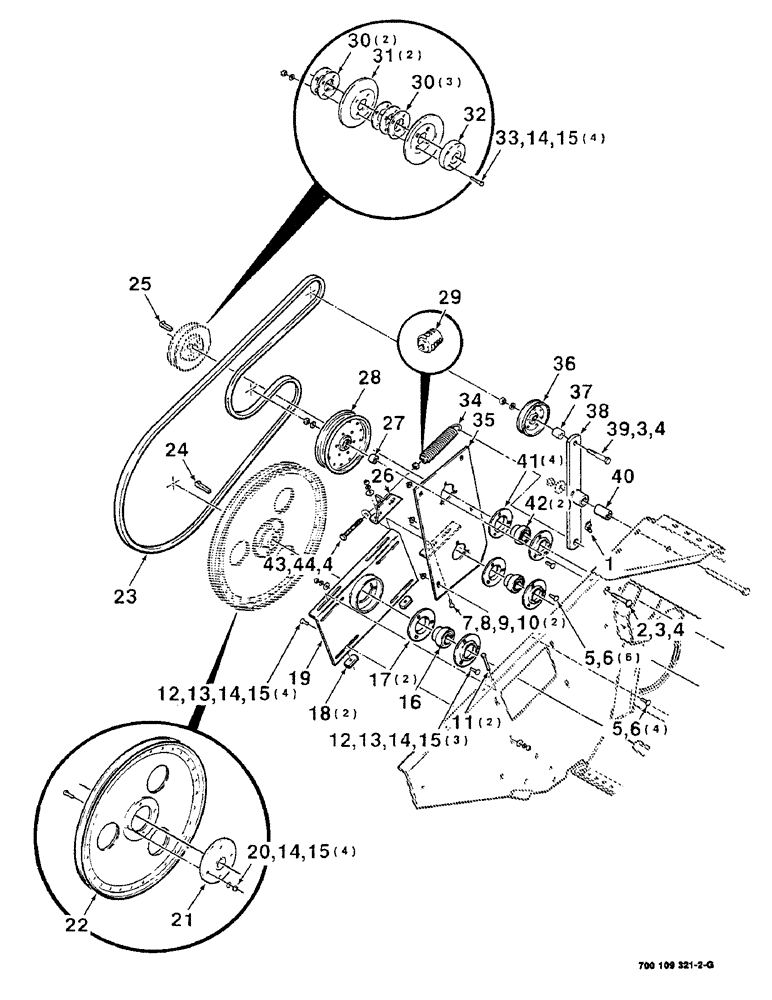

Запчасти Case IH 8350 (2-28) - REEL DRIVE ASSEMBLY (09) - CHASSIS

1

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

2

433-840

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 X 2-1/2 RHSNB

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

10шт.

6

231-5146

FLANGE NUT,3/8"-16

10шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

113-210

BOLT,Hex, 3/8" - 16 x 3", Gr 5, Full Thd

2шт.

12

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

14

492-11038

LOCK WASHER,3/8"

15шт.

15

425-106

NUT,3/8"-16, Cl 5

15шт.

16

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- spherical

1шт.

17

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

18

129-471

NUT

3/8-16 WELD NUT

2шт.

19

700109654

MOUNTING PARTS

MOUNTING WA - reel, right

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

1660901

HUB

- sheave, reel

1шт.

22

51200248

SHEAVE

- reel, drive

1шт.

23

857219

V-BELT,0.88" W x 132.20" L

1шт.

24

Q81

KEY,Gib, 3/8" Sq x 1 3/4"

3/8 X 3/8 X 1-3/4 GIB KEY

1шт.

25

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1/4 X 1-1/2 GIB KEY

1шт.

26

700109657

ANCHOR

1шт.

27

6531362

BUSHING

SPACER

1шт.

28

54510

FRONT IDLER

IDLER - flat

1шт.

29

6189989

PLUG

- spring

1шт.

30

1661923

SHIM

- spacer

5шт.

31

338244

SHEAVE

- half

2шт.

32

6574859

HUB

- sheave, adjustable

1шт.

33

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

34

6189971

SPRING

- tension (Includes item 29)

1шт.

35

700109664

MOUNTING PARTS

MOUNTING - auger

1шт.

36

53553

SHAFT

SHEAVE - idler

1шт.

37

383976

BUSHING

SPACER

1шт.

38

700109659

SUPPORT

ARM - support, idler

1шт.

39

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

40

700109663

BUSHING

- idler

1шт.

41

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

4шт.

42

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

2шт.

43

873455

SCREW,Hex, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FTC

1шт.

44

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.
