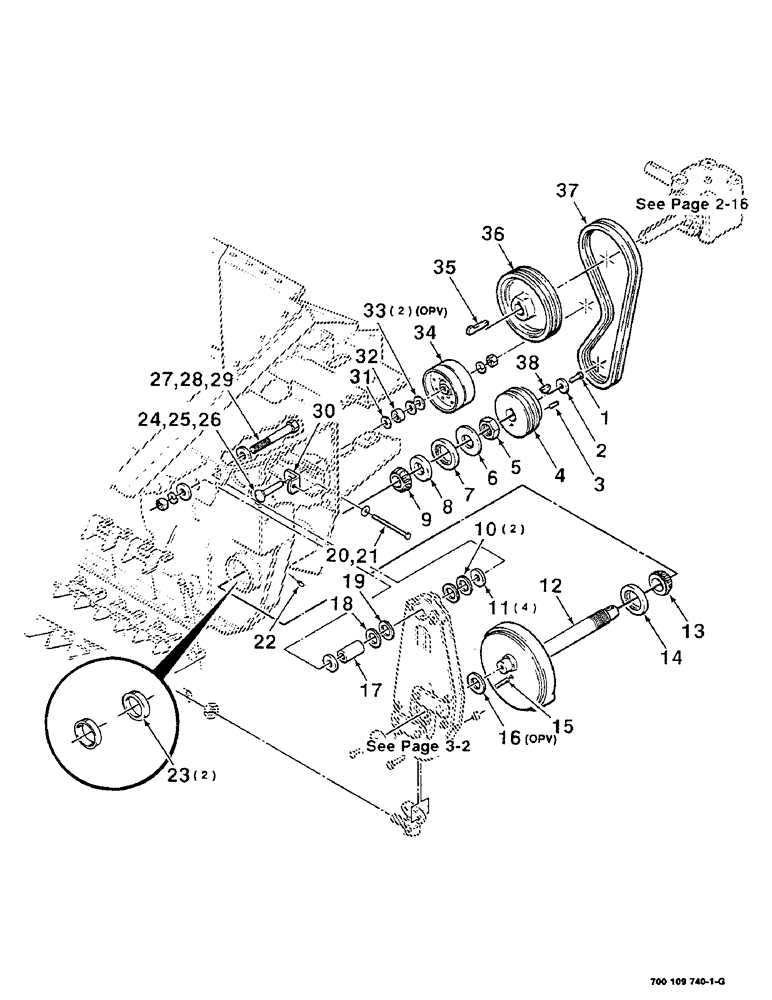

Запчасти Case IH 8350 (2-26) - SICKLE DRIVE ASSEMBLY (09) - CHASSIS

1

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2-20 X 1-1/4 C

1шт.

2

6181994

WASHER

1шт.

3

83-516

SET SCREW,Hex Soc, 5/16"-18 x 1"

5/16-18 X 1 CPHSSS

1шт.

4

700109329

PULLEY

SHEAVE

1шт.

5

7774953

NUT,Jam, 1 5/8"-12, G2

1-5/8-12 HEX JAM NUT

1шт.

6

6582670

SPACER

WASHER

1шт.

7

8044307

SEAL

1шт.

8

6582407

SPACER

1шт.

9

912735R91

ROLLER BEARING,1.6255" ID x 1.1563"

- cone

1шт.

10

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

11

497800

WASHER

4шт.

12

700109332

CRANK

- Pitman (Includes item 15)

1шт.

13

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

BEARING - cone

1шт.

14

8044083

SEAL

- external

1шт.

15

83-616

SET SCREW,Hex Soc, 3/8"-16 x 1"

3/8-16 X 1 CPHSSS

1шт.

16

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

1-3/8 X 14 GAUGE NRMB

1шт.

17

700109340

BUSHING

- pivot, swaybar

1шт.

18

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

1шт.

19

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

1шт.

20

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

1шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

23

170254R1

BEARING, CUP

CUP - bearing

2шт.

24

433-1052

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/4", Gr 5

5/8-11 X 3-1/4 RHSNB

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

425-1010

NUT,5/8"-11, G5

1шт.

27

413-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

.75 X 5.5 UNC GR5 YZD

1шт.

28

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

29

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

30

700127577

ANGLE

ASSEMBLY

1шт.

31

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

32

327296

INSERT

1шт.

33

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

2шт.

34

853804

ARM

IDLER - flat

1шт.

35

761155

BUCKET TOOTH KEY

1/4 X 1/4 X 2 GIB KEY

1шт.

36

700122899

SHEAVE

- gearbox, input

1шт.

37

700704407

SET OF BELTS,0.63" W x 51.58" L

2 Matched, V-Belt 0.63" W x 51.58" L

1шт.

38

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.
