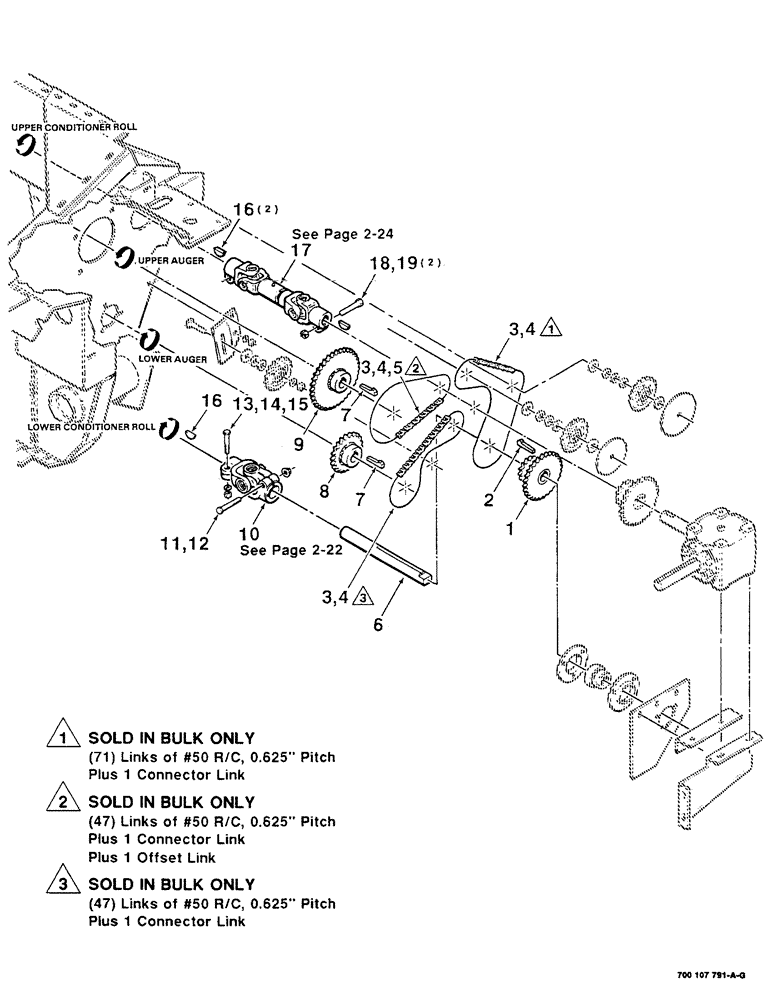

Запчасти Case IH 8350 (2-20) - MAIN DRIVE ASSEMBLY, U-JOINTS, COUPLER AND CHAINS (09) - CHASSIS

1

700109643

SPROCKET ASSY.

SPROCKET - 50B14 and 50A28 tooth

1шт.

2

249-1

KEY

1/4 X 1/4 X 1-3/4 GIB KEY

1шт.

3

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

ROLLER CHAIN - #50 (10 foot bulk)

1шт.

4

1310D

LINK

- connector, #50 R/C

3шт.

5

1315D

LINK

- offset, #50 R/C

1шт.

6

700107792

SHAFT

- drive, lower roll

1шт.

7

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1/4 X 1-1/2 GIB KEY

2шт.

8

700109630

SPROCKET ASSY.

SPROCKET WA - 50B22 tooth

1шт.

9

700109639

SPROCKET ASSY.

SPROCKET WA - 50B35 tooth

1шт.

10

700705515

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

11

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

1шт.

12

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

13

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

16

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

3шт.

17

700704568

UNIVERSAL JOINT

U-JOINT ASSEMBLY

1шт.

18

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C

2шт.

19

425-148

JAM NUT,Jam, 1/2"-13, G5

2шт.
