(2-16) - GEARBOX ASSEMBLY, 700704514 COMPLETE

Запчасти Case IH 8350 (2-16) - GEARBOX ASSEMBLY, 700704514 COMPLETE (09) - CHASSIS

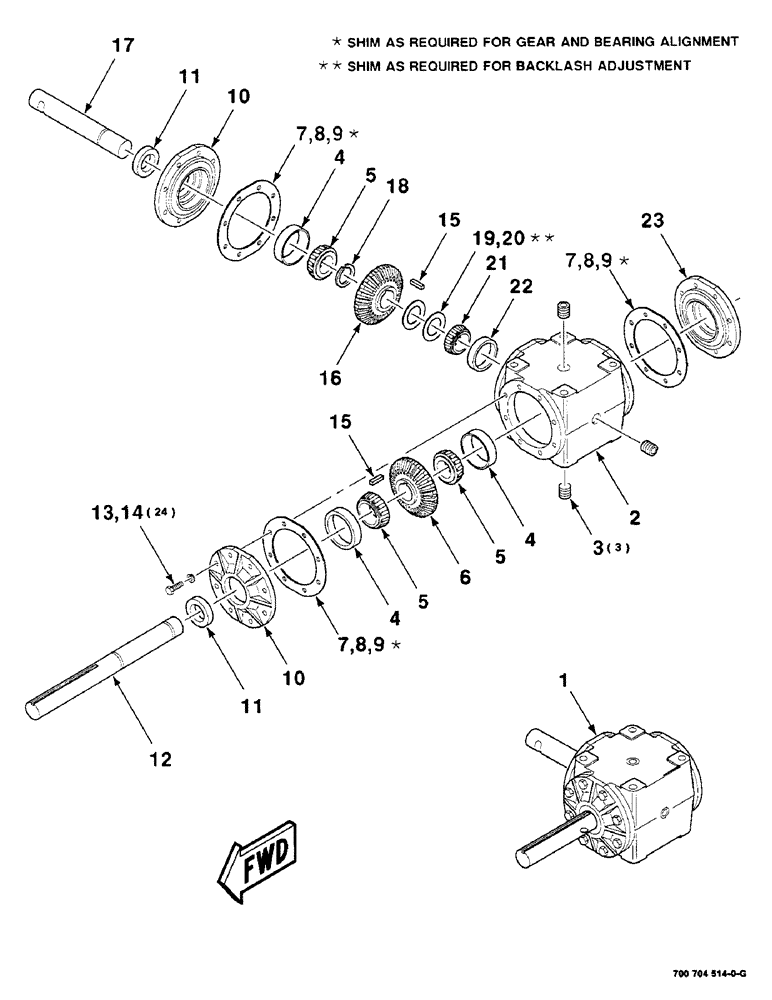

Схема запчастей Case IH 8350 - (2-16) - GEARBOX ASSEMBLY, 700704514 COMPLETE (09) - CHASSIS
21
17
11
10
7
3
1
4
19
13
14
11
7
5
8
10
23
8
4
9
20
4
15
12
6
9
5
9
16
5
18
22
2
7
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700704514

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE (Includes items 2 thru 23)

1шт.

1

700704514R

REMAN-TRANSMISSION

Remanufactured Gearbox

1шт.

1

700704514C

CORE-TRANSMISSION

Return Number, Gearbox

1шт.

2

700100292

HOUSING

1шт.

3

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1/2-13 NPT PIPE PLUG

3шт.

4

710350

BRACKET,69.037 mm OD x 15.875 mm

- bearing

3шт.

5

T20939

ROLLER BEARING,1.25" ID x 0.771"

BEARING - cone

3шт.

6

814103

GEAR

(30 tooth)

1шт.

7

1702232

GASKET

- aluminum (.003)

1шт.

8

1702224

GASKET

- aluminum (.005)

1шт.

9

1702216

GASKET

- aluminum (.015)

1шт.

10

757120

CAP

2шт.

11

76961C1

OIL SEAL

2шт.

12

700704918

SHAFT

- input

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

C Hex, 5/16"-18 x 1", G5, Full Thd

24шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

15

753574

KEY

2шт.

16

814111

GEAR

(20 tooth)

1шт.

17

700704862

SHAFT

- output

1шт.

18

757229

RING, SNAP

RING - retaining

1шт.

19

753426

SHIM

(.005)

1шт.

20

753434

SHIM

(.010)

1шт.

21

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - cone

1шт.

22

651817R1

BEARING CUP

CUP - bearing

1шт.

23

757054

CAP

- blank

1шт.
