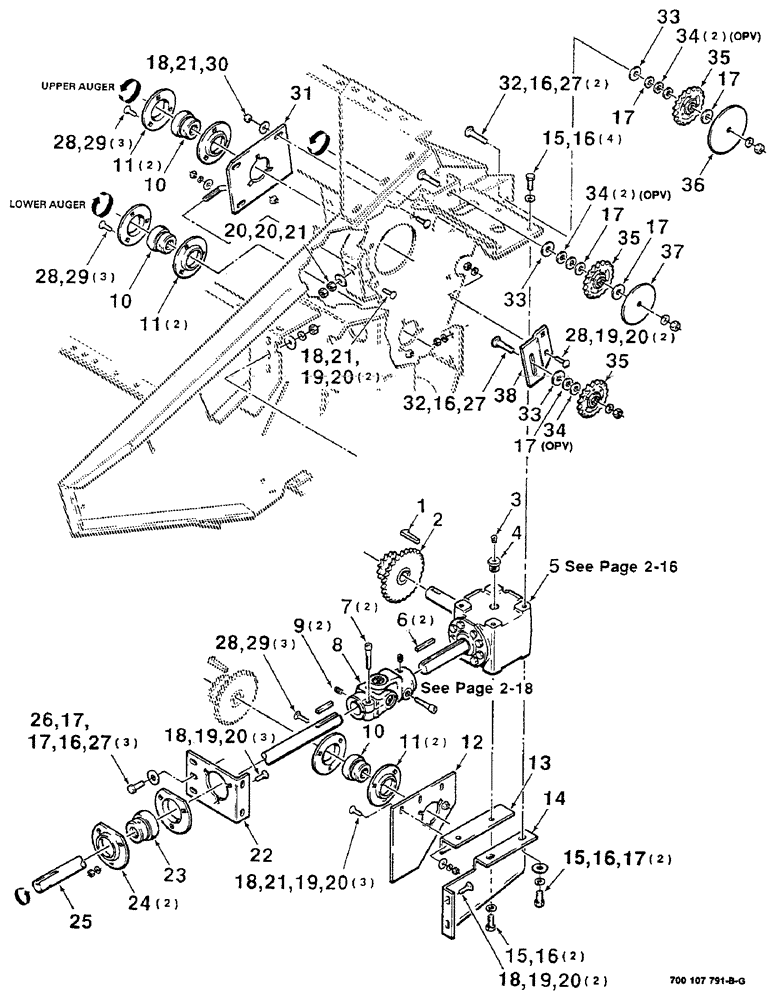

Запчасти Case IH 8350 (2-14) - MAIN DRIVE ASSEMBLY, GEARBOX AND CHAIN TIGHTENER (09) - CHASSIS

1

249-1

KEY

1/4 X 1/4 X 1-3/4 GIB KEY

1шт.

2

700109643

SPROCKET ASSY.

SPROCKET - 50B14 and 50A28 tooth

1шт.

3

152127H1

BREATHER,1/8"-27, Short

PLUG - vented

1шт.

4

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1/2-14 NPTF X 1/8 REDUCER BUSHING

1шт.

5

700704514

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

5

700704514R

REMAN-TRANSMISSION

Remanufactured Gearbox

1шт.

5

700704514C

CORE-TRANSMISSION

Return Number, Gearbox

1шт.

6

61119

KEY

1/4 X 1/4 X 2 STRAIGHT KEY

2шт.

7

61-832

HEX SOC SCREW,1/2"-13 x 2"

1/2-13 X 2 HSHCS

2шт.

8

700706199

JOINT

U-JOINT ASSEMBLY

1шт.

9

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

3/8-16X.375 H-SOC SET ZN

2шт.

10

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

3шт.

11

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

6шт.

12

700109647

MOUNTING PARTS

MOUNTING - bearing, conditioner

1шт.

13

700109648

SUPPORT

1шт.

14

700109650

SUPPORT

- gearbox

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

14шт.

17

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

13шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

11шт.

19

492-11038

LOCK WASHER,3/8"

12шт.

20

425-106

NUT,3/8"-16, Cl 5

14шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

22

700109626

MOUNTING PARTS

MOUNTING - bearing

1шт.

23

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

1шт.

24

163733

FLANGE

- bearing

2шт.

25

700109763

SHAFT

- drive

1шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

28

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

11шт.

29

231-5146

FLANGE NUT,3/8"-16

9шт.

30

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

31

700109640

MOUNTING PARTS

MOUNTING - auger

1шт.

32

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

3шт.

33

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

3шт.

34

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GAUGE NRMB

5шт.

35

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

3шт.

36

6272785

SHIELD

- chain

1шт.

37

700109646

SHIELD

- chain

1шт.

38

700109649

SUPPORT

- idler

1шт.
