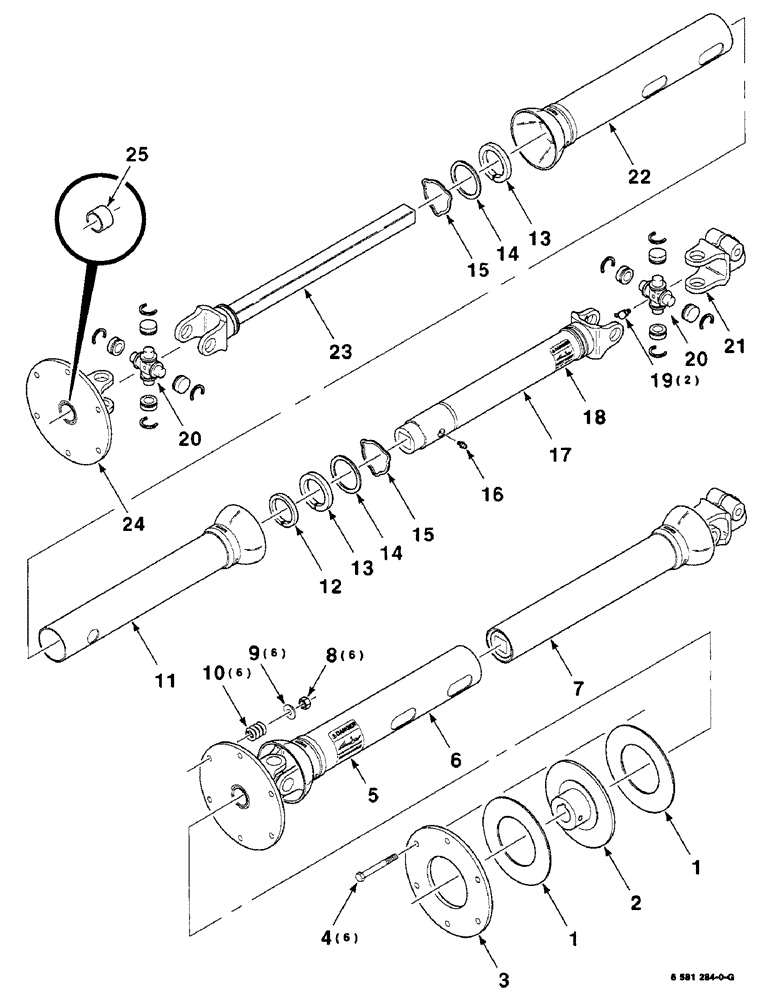

Запчасти Case IH 8350 (2-12) - SLIP CLUTCH U-JOINT ASSEMBLY (09) - CHASSIS

1

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC - friction

2шт.

2

700122891

DISC

WA

1шт.

3

392464

LARGE PLATE

PLATE - pressure

1шт.

4

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

5

80672C1

DECAL

- danger

1шт.

6

7813850

GASKET

U-JOINT ASSEMBLY - flanged half

1шт.

7

7813892

UNIVERSAL JOINT

U-JOINT ASSEMBLY - clamp half

1шт.

8

131-463

NUT,3/8"-16

NUT, LOCK, , Heavy 3/8"-16

6шт.

9

495-21044

WASHER,3/8"

6шт.

10

58107

SPRING

- compression

6шт.

11

7813926

SHIELD

- inner

1шт.

12

755132

NYLON BEARING,60.58 mm OD x 6.4 mm

BEARING - nylon, center

1шт.

13

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon

2шт.

14

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

2шт.

15

613436R1

CLAMP

RING - retaining

2шт.

16

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

17

7813918

FORK

YOKE AND TUBE WA

1шт.

18

700708583

DECAL

- danger

1шт.

19

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREES

2шт.

20

753772

KIT

CROSS AND BEARING REPAIR KIT (Includes item 19)

2шт.

21

7813934

FORK

YOKE - clamp

1шт.

22

7813876

SHIELD

- outer

1шт.

23

7813868

SHAFT

YOKE AND SHAFT WA

1шт.

24

7813884

FORK

YOKE WA - flanged (Includes item 22)

1шт.

25

52779

BRONZE BUSHING

BEARING

1шт.
