(2-10) - U-JOINT ASSEMBLY, NEAPCO, S.N. CFH0007093 AND LATER)

Запчасти Case IH 8350 (2-10) - U-JOINT ASSEMBLY, NEAPCO, S.N. CFH0007093 AND LATER) (09) - CHASSIS

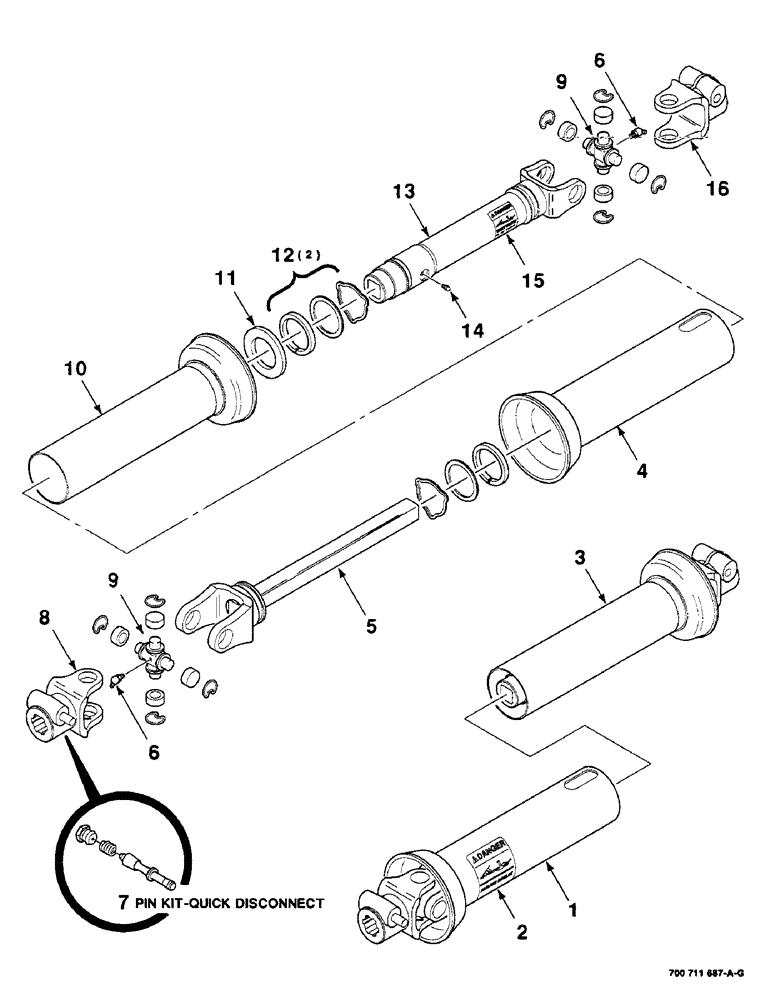

Схема запчастей Case IH 8350 - (2-10) - U-JOINT ASSEMBLY, NEAPCO, S.N. CFH0007093 AND LATER) (09) - CHASSIS
4
3
8
11
2
1
9
9
6
12
10
13
5
14
15
16
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700711691

PTO

U-JOINT ASSEMBLY - tractor half

1шт.

2

80672C1

DECAL

- danger

1шт.

3

700711692

PTO

U-JOINT ASSEMBLY - implement half

1шт.

4

700711674

SHIELD

OUTER - shield

1шт.

5

700709720

YOKE

AND SHAFT

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

7

700708364

KIT

PIN KIT - quick disconnect

1шт.

8

568100R93

FORK

YOKE ASSEMBLY

1шт.

9

753772

KIT

CROSS AND BEARING KIT (Includes item 6)

2шт.

10

700711675

SHIELD

- inner

1шт.

11

700711690

NYLON BEARING

BEARING - nylon

1шт.

12

700711688

SHIELD

BEARING KIT - shield

2шт.

13

700709719

YOKE

AND TUBE

1шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

15

700708583

DECAL

- danger

1шт.

16

7813843

YOKE

CLAMP - yoke

1шт.
