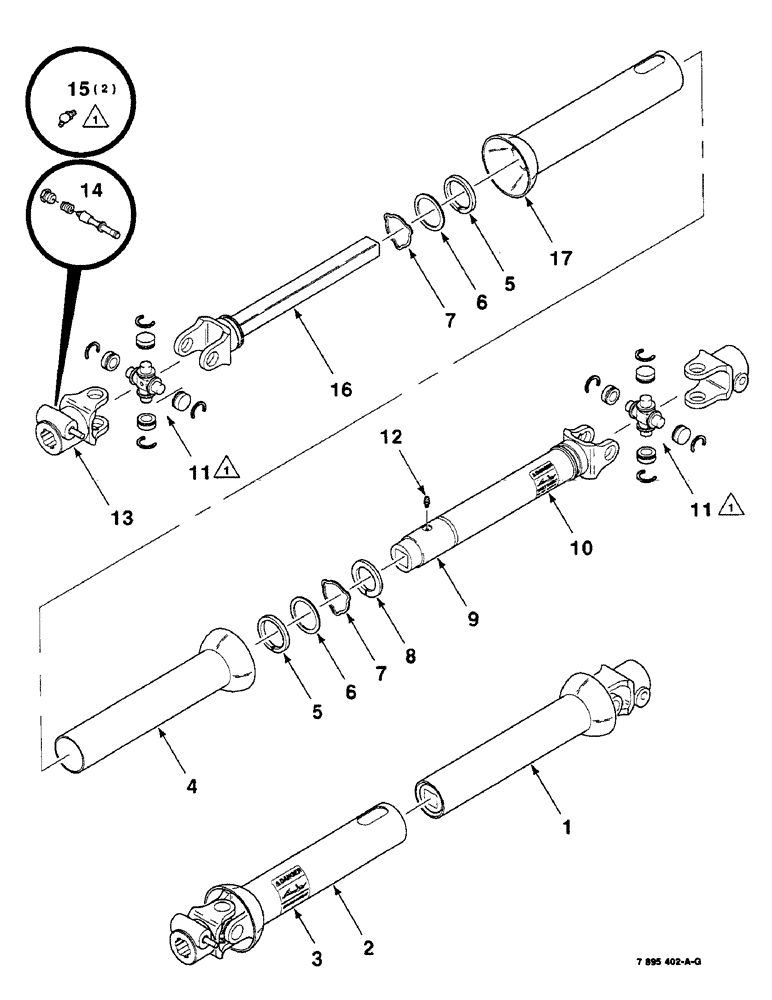

Запчасти Case IH 8350 (2-04) - U-JOINT ASSEMBLY, WALTERSCHEID,S.N. CFH0006501 THRU CFH0006826 (09) - CHASSIS

1

7813819

UNIVERSAL JOINT

U-JOINT ASSEMBLY - half, superseded by: 700709363, 700709364 & 700709007(2)

1шт.

700709363

REAR PTO ASSY

U-JOINT ASSEMBLY - implement half

1шт.

2

7813777

SEAL

U-JOINT ASSEMBLY - half, superseded by: 700708521

1шт.

700708521

DRIVE SHAFT

U-JOINT ASSEMBLY - half, superseded by: 700709362, 700709365 & 700709007(2)

1шт.

700709362

FRONT PTO ASSY

U-JOINT ASSEMBLY - tractor half

1шт.

3

80672C1

DECAL

- danger

1шт.

4

7813835

SHIELD

- inner

1шт.

5

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

- nylon

2шт.

6

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

- thrust

2шт.

7

613436R1

CLAMP

RING - retaining

2шт.

8

7813801

NYLON BEARING

BEARING - nylon, center

1шт.

9

7813827

FORK

YOKE AND TUBE WA

1шт.

10

700708583

DECAL

- danger, shield missing

1шт.

11

753772

KIT

CROSS AND BEARING REPAIR KIT (Includes item 15)

2шт.

12

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

13

754465

FORK

YOKE ASSEMBLY - tractor (540 rpm)

1шт.

568100R93

FORK

YOKE ASSEMBLY - tractor (540 rpm) (Includes item 14)

1шт.

14

700708364

KIT

LOCK PIN KIT

1шт.

15

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 65 DEGREE ZERK

2шт.

16

7813785

SHAFT

YOKE AND SHAFT WA

1шт.

17

7813793

SHIELD

- outer

1шт.

7813843

YOKE

YOKE, locateed to the right of cross kit ref 11 on art.

1шт.
