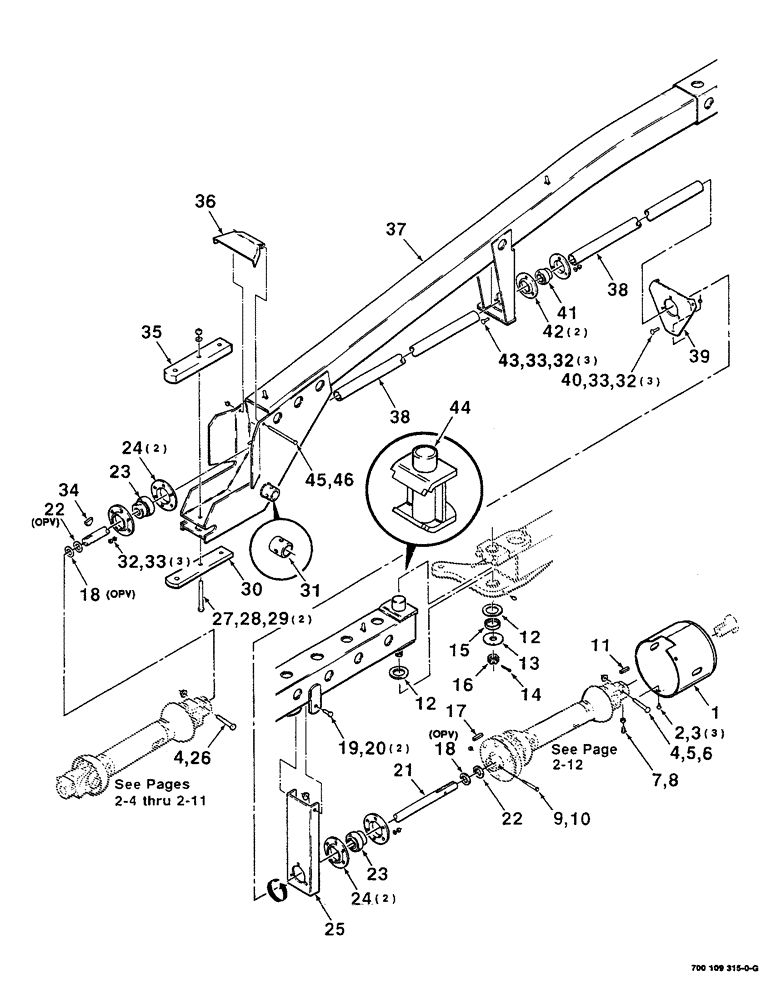

Запчасти Case IH 8350 (2-02) - TONGUE AND PRIMARY DRIVE ASSEMBLY (09) - CHASSIS

1

700109434

SHIELD

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HFSS

3шт.

3

231-5146

FLANGE NUT,3/8"-16

3шт.

4

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2-13 X 2-3/4 C

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

7

85-516

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16-18 X 1 CPSQHSS

1шт.

8

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

9

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

10

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

1шт.

11

03312AB

1/4 X 1/4 X 1-1/2 STRAIGHT KEY

1шт.

12

6462519

SHIM

- wear

2шт.

13

400507

WASHER

1шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

15

6504914

STOP

1шт.

16

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

1шт.

17

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 X 5/16 X 1-3/4 STRAIGHT KEY

1шт.

18

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

2шт.

19

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

20

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.

21

700109368

SHAFT

- drive

1шт.

22

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

2шт.

23

485259R91

BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"

- spherical

2шт.

24

825620C1

RETAINER

- bearing

4шт.

25

700109369

SUPPORT

- bearing

1шт.

26

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

27

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

29

425-1010

NUT,5/8"-11, G5

2шт.

30

700109373

CLEVIS

- hitch

1шт.

31

6227391

TUBE,2" OD, 1.88" Length

- jack mounting

1шт.

32

425-106

NUT,3/8"-16, Cl 5

9шт.

33

492-11038

LOCK WASHER,3/8"

9шт.

34

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

35

700109764

CLEVIS

PLATE

1шт.

36

700109375

SHIELD

- PTO

1шт.

37

700109376

TOW BAR

TONGUE WA

1шт.

38

700109372

TUBE,1.38" ID, 1.66" OD, 1380 mm Length

- shield

2шт.

39

700109370

PARTITION

BULKHEAD

1шт.

40

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

41

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - spherical

1шт.

42

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

43

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

44

700109387

PIN

WA - replacement

1шт.

45

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8-16 X 6 C

1шт.

46

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.
