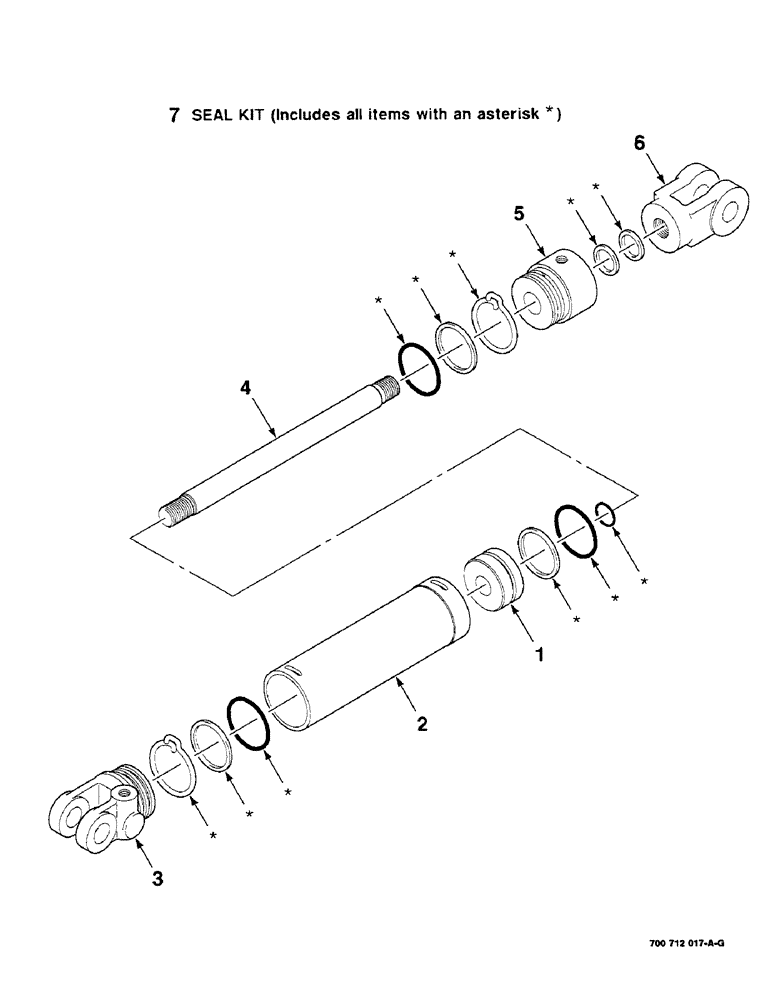

Запчасти Case IH 8350 (8-12) - HYD. CYL. ASSY., HEADER LIFT LEFT, 700712017 COMPLETE, S.N. CFH0007093 & LATER (08) - HYDRAULICS

700712017

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2-1/2" bore x 8" stroke)

1шт.

1

102905A1

PISTON

- cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

HEAD - cylinder

1шт.

4

102907A1

ROD

- piston

1шт.

5

102909A1

BEARING

- cylinder rod

1шт.

6

102908A1

END

CLEVIS - rod end

1шт.

7

H673838

SEAL

SEAL KIT

1шт.
