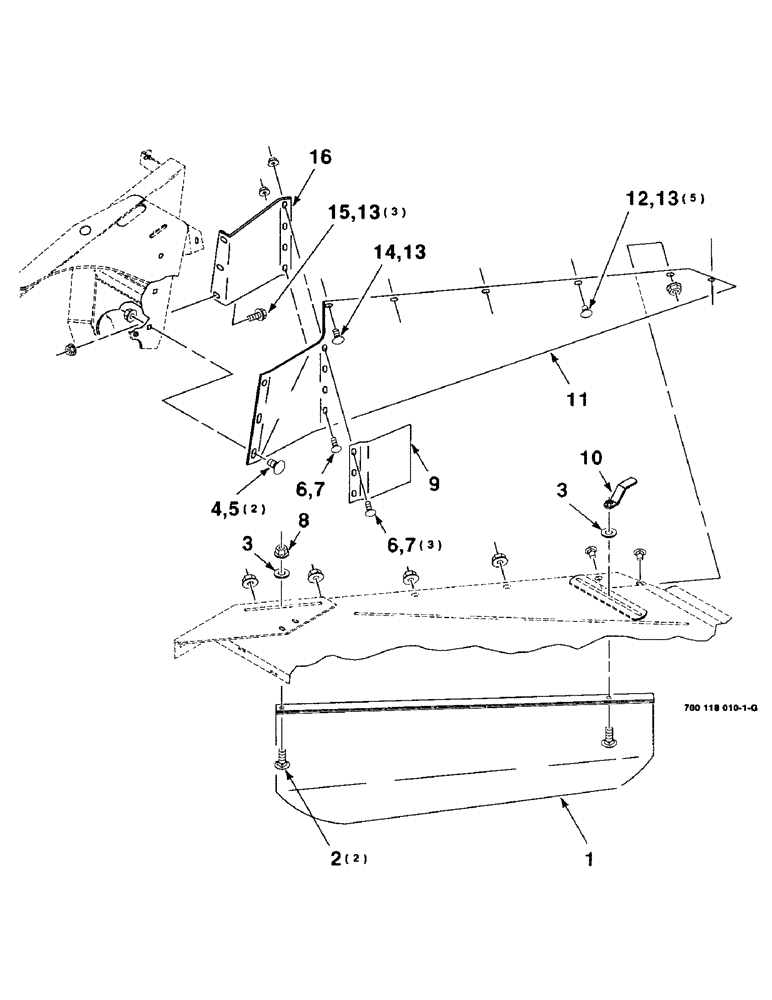

Запчасти Case IH 8340 (7-30) - FORMING SHIELDS ASSEMBLY, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700118244

SHIELD

- forming, right

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 RHSNB

2шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

4

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

6

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

1шт.

9

700118242

SHIELD

- right

1шт.

10

6232532

NUT

ASSEMBLY

1шт.

11

700118237

SUPPORT

- right

1шт.

12

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

5шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

9шт.

14

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

3шт.

16

700118282

SUPPORT

- shield, right

1шт.
