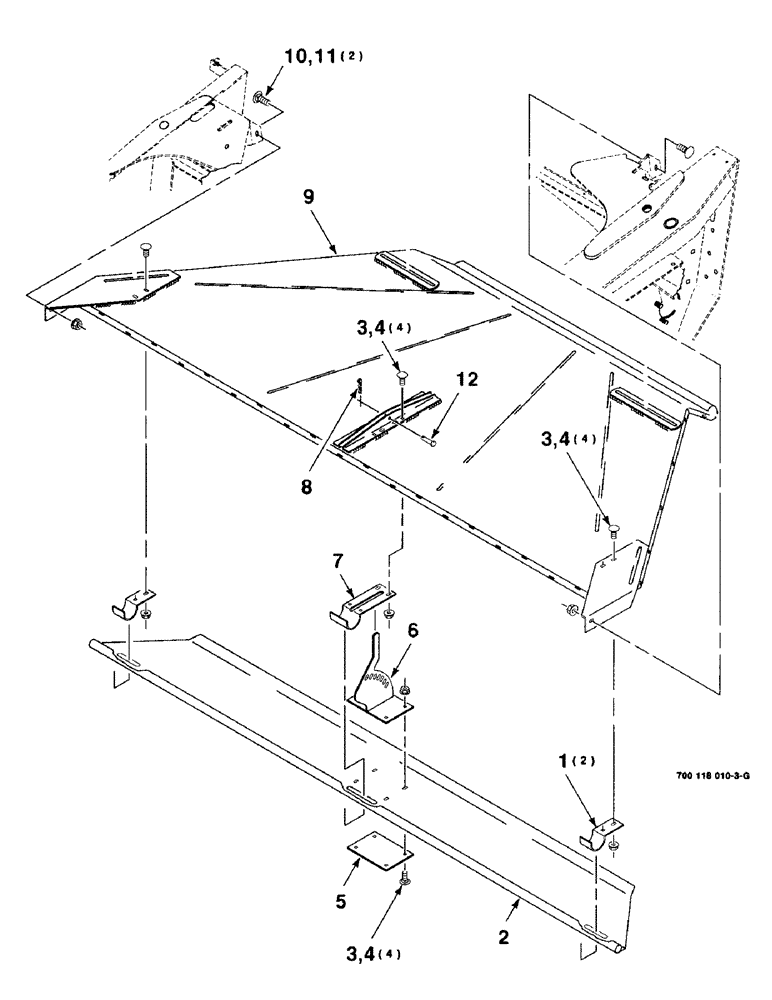

Запчасти Case IH 8340 (7-26) - FORMING SHIELDS ASSEMBLY, CTR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700118238

RETAINER

2шт.

2

700118234

SHIELD

- swath

1шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

12шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

5

700118233

PLATE

1шт.

6

700118230

HANDLE

WA

1шт.

7

700118235

RETAINER

1шт.

8

T54573

PIN

.120 WIRE HAIR PIN COTTER

1шт.

9

700118221

SHIELD

WA - top

1шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

063586

CLEVIS PIN

1шт.
