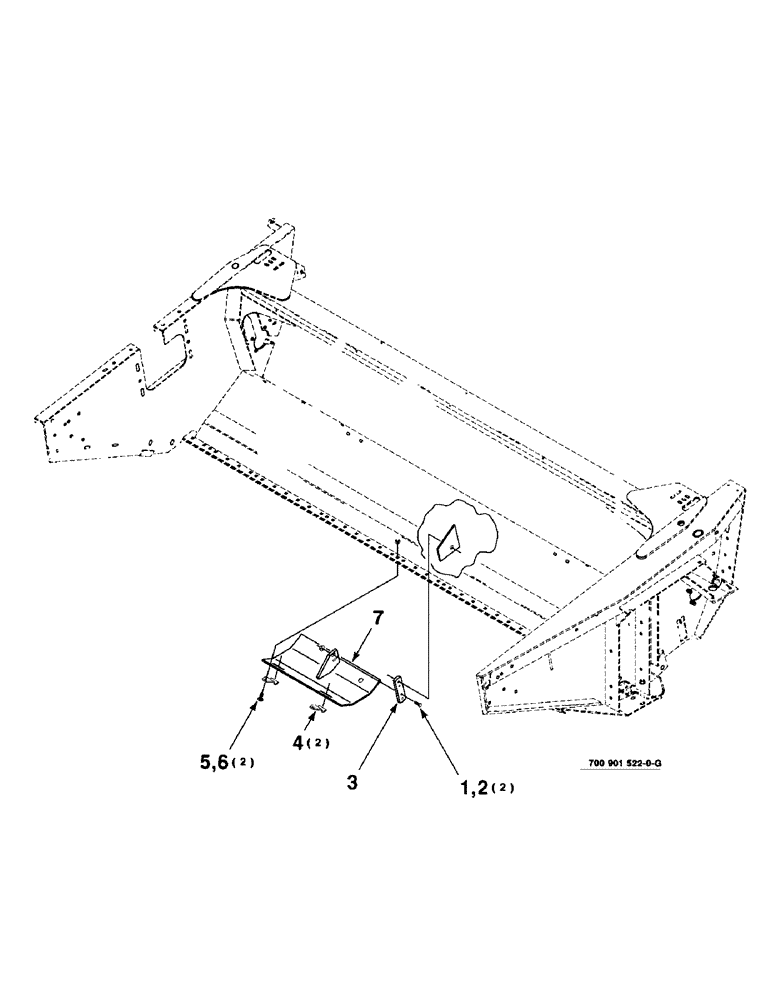

Запчасти Case IH 8340 (9-10) - SKID SHOE KIT, CTR, HK10149 SKID SHOE KIT COMPLETE (88) - ACCESSORIES

HK10149

SHOE

SKID SHOE KIT COMPLETE

1шт.

1

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

3

453670

LINK

1шт.

4

6453799

CLIP

- shoe

2шт.

5

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

6

425-107

NUT,7/16"-14, G5

7/16-14 H

2шт.

7

6580567

SHOE

- skid

1шт.

700122892

SHOE

- skid

1шт.
