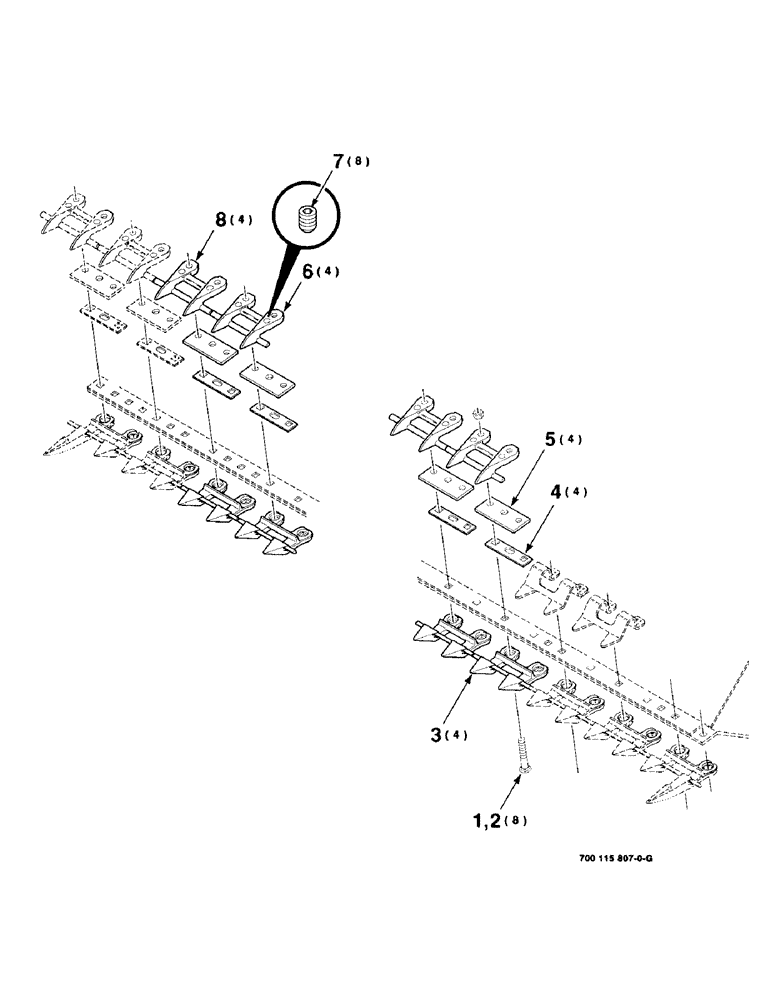

Запчасти Case IH 8340 (9-08) - 2 STUB GUARD KIT, ADJ STUB ON STUB GUARD, 700115807 ADJ. STUD GUARD KIT COMPLETE (88) - ACCESSORIES

700115807

KIT

ADJUSTABLE STUB GUARD KIT COMPLETE

1шт.

1

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

8шт.

2

425-107

NUT,7/16"-14, G5

7/16-14 H

8шт.

3

49312

GUARD

- double

4шт.

4

700111956

PLATE

SHIM - lower

4шт.

5

700106256

PLATE

SHIM - upper

4шт.

6

700702736

GUARD

- top, ADJ

4шт.

7

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

8шт.

8

700106782

FINGER

HOLDDOWN (Includes Items 6 & 7)

4шт.
