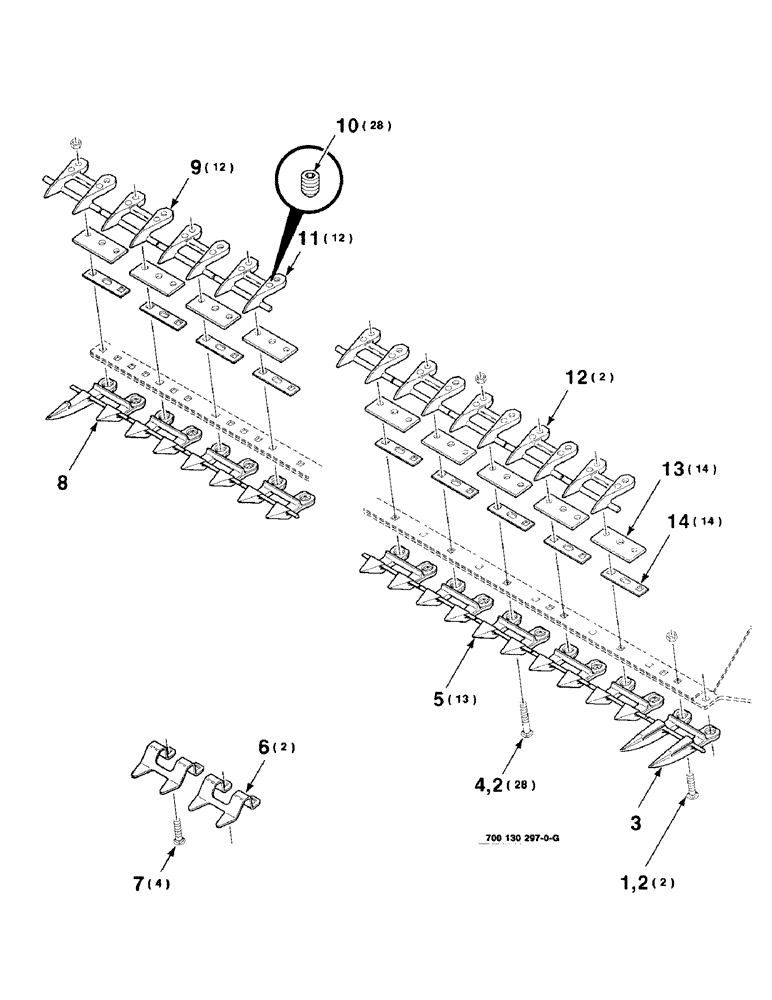

Запчасти Case IH 8340 (9-06) - 7 STUB GUARD KIT, ADJ STUB ON STUB GUARD, 700130297 ADJ. STUB GUARD KIT COMPLETE (88) - ACCESSORIES

700130297

GUARD

ADJUSTABLE STUB GUARD KIT COMPLETE

1шт.

1

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

2шт.

2

425-107

NUT,7/16"-14, G5

7/16-14 H

30шт.

3

700707147

GUARD

- double, range

1шт.

4

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

28шт.

5

49312

GUARD

- double

13шт.

6

6586622

GUARD

HOLDDOWN - high clearance

2шт.

7

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

4шт.

8

6210652

GUARD

- right

1шт.

9

700106782

FINGER

HOLDDOWN (Includes Items 10 & 11)

12шт.

10

700703319

SET SCREW,1/2" - 13 x 1/2"

1/2-13 X 1/2 OVAL POINT SOCKET SET SCREW (with patch lock)

28шт.

11

700702736

GUARD

- top, ADJ

12шт.

12

700127872

GUARD

- adjustable top, special

2шт.

13

700106256

PLATE

SHIM - upper

14шт.

14

700111956

PLATE

SHIM - lower

14шт.
